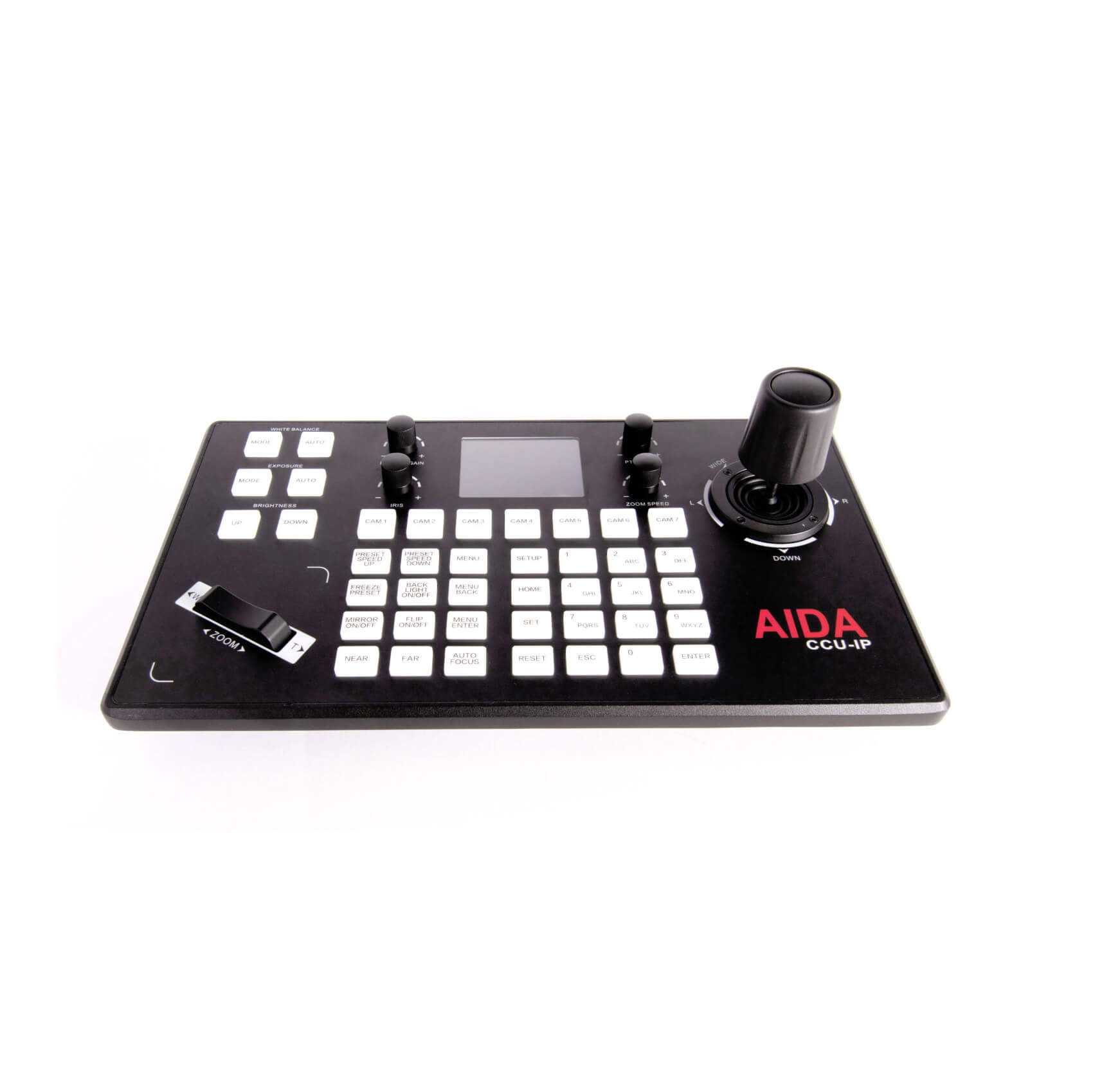

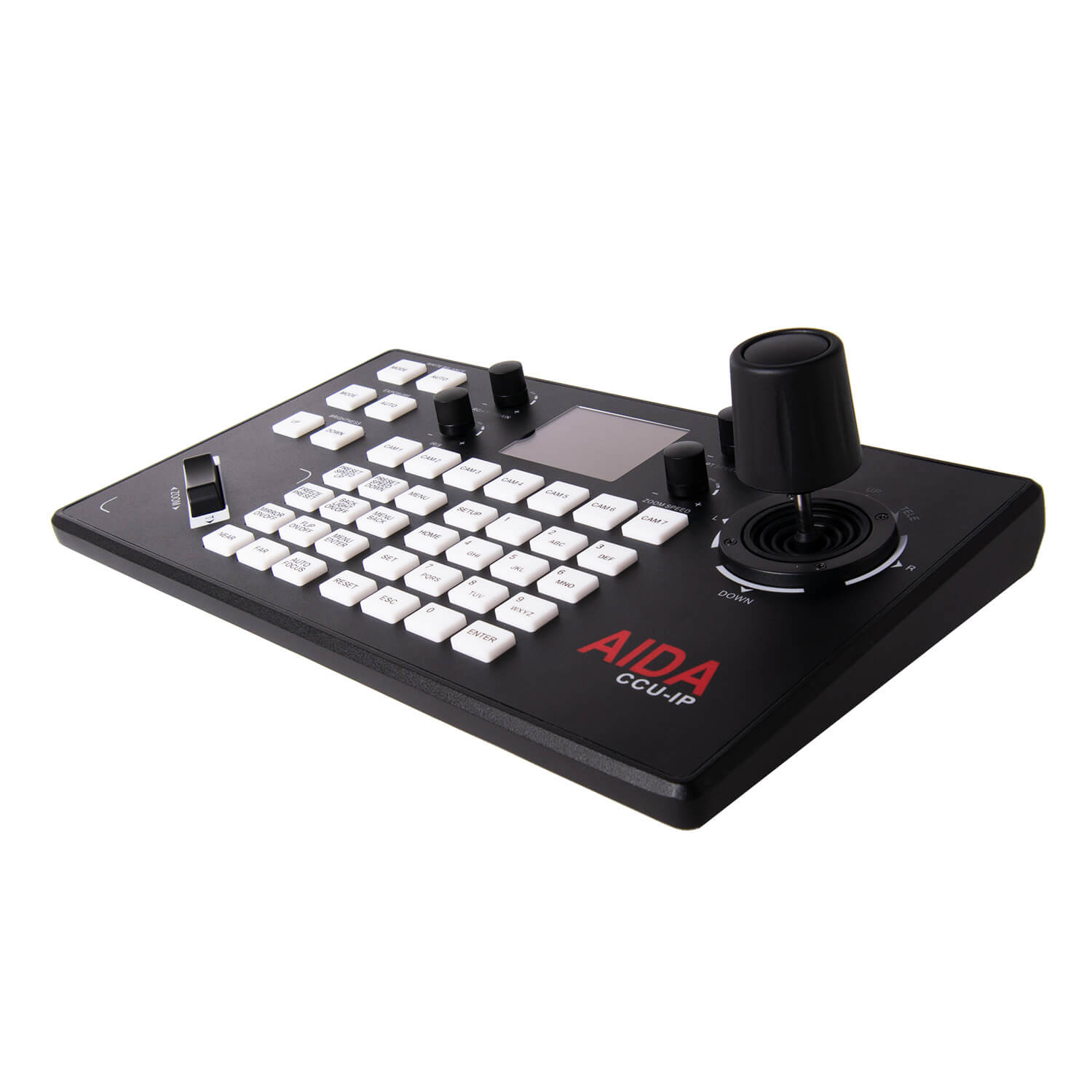

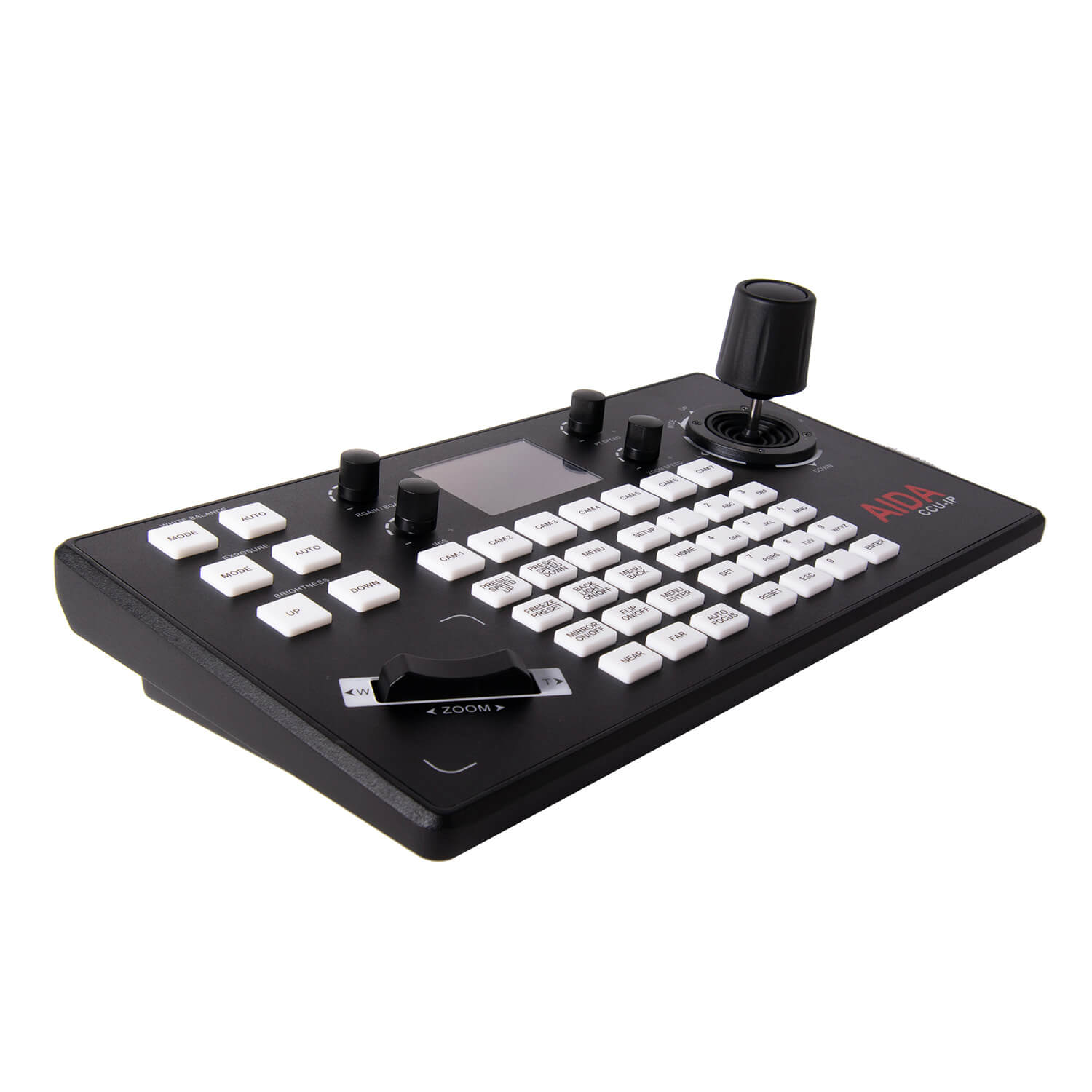

AIDA CCU-IP VISCA Serial and IP PTZ Camera Controller
  • AIDA CCU-IP VISCA Serial and IP PTZ Camera Controller
  • AIDA CCU-IP VISCA Serial and IP PTZ Camera Controller
  • AIDA CCU-IP VISCA Serial and IP PTZ Camera Controller
  • AIDA CCU-IP VISCA Serial and IP PTZ Camera Controller
AIDA CCU-IP VISCA Serial and IP PTZ Camera Controller

AIDA CCU-IP VISCA Serial and IP PTZ Camera Controller

AID-CCU-IP
$756.70 $1,175.37
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.
FAST DELIVERY. FREE SHIPPING & returns.

In stock: 1 available

Professional-grade PTZ camera controller delivering seamless control over pan, tilt, and zoom functions via VISCA serial and IP protocols. Compatible with a wide range of PTZ cameras, this controller offers reliable command transmission for live production, broadcasting, and surveillance applications.

Features an intuitive interface design for operators of all skill levels. Supports simultaneous control of multiple cameras with precise movement commands and preset position memory. Durable construction built for demanding production environments and 24/7 operation.

Ideal for studios, conference rooms, houses of worship, and professional AV installations requiring flexible, accurate camera positioning and switching.

Product overview
Key product features

✅ Professional PTZ Camera Controller
The AIDA CCU-IP provides complete PTZ control for professional video productions, allowing operators to manage camera movement, presets and image settings from a single dedicated control surface.

✅ Control Up to 7 Cameras
Manage up to 7 PTZ cameras simultaneously, making the CCU-IP ideal for broadcast studios, houses of worship, lecture theatres, conference facilities and live event productions.

✅ VISCA over IP & Serial Control
Supports both network-based and traditional serial workflows including:
VISCA over IP
VISCA RS-232
VISCA RS-422
RS-485 Pelco

Providing compatibility with both modern IP and legacy PTZ systems.

✅ Hall Effect Professional Joystick
The integrated Hall Effect joystick provides smooth, accurate pan-and-tilt control with the long-term reliability and precision demanded by professional operators.

✅ Advanced Camera Image Control
Beyond basic PTZ movement, operators can adjust:
White Balance
Auto Exposure
Iris
Gain
Focus
Red/Blue Gain
Image Settings
without accessing camera menus directly.

✅ Store and Recall Camera Presets
Save up to 10 presets per camera to rapidly switch between common positions and shot compositions during live productions.

✅ Onboard LCD Display
The built-in LCD screen provides camera status, settings feedback and operational information for fast and accurate configuration.

✅ Designed for Live Production
Featuring dedicated controls, soft-touch buttons and ergonomic layout, the CCU-IP is built for long production sessions where fast and reliable camera operation is critical.

✅ Flexible Power Options
Power the controller via:
PoE (Power over Ethernet)
12V DC Power Supply
for easy deployment in a wide variety of installation environments.
Data & specifications sheet

Model: AIDA CCU-IP
Product Type: Professional PTZ Camera Controller
Control Protocols: VISCA, VISCA over IP
Additional Camera Support: RS-485 Pelco
Maximum Cameras Supported: 7 Cameras

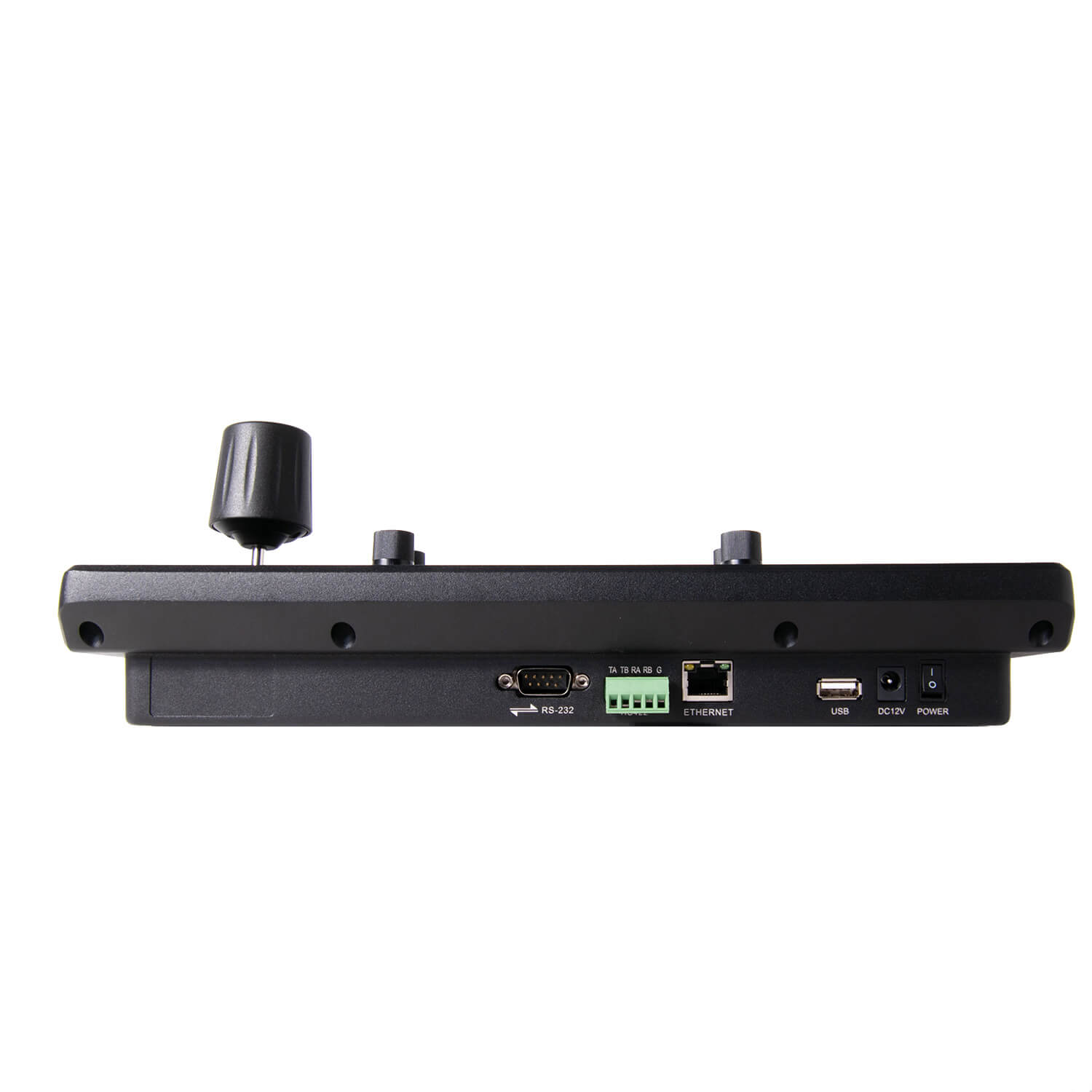

Control Interfaces: RS-232, RS-422, RJ45 Ethernet
Network Control: VISCA over IP
Joystick Type: Hall Effect PTZ Joystick
Preset Memory: 10 Presets per Camera
Display: Integrated LCD Screen
Camera Functions: PTZ, Focus, Zoom, Iris, Gain, White Balance, Exposure Control
Power Options: PoE or 12V DC
Dimensions: 12.625" × 7" × 4.25" (320 × 178 × 108 mm)
Weight: 4 lbs (1.8 kg)
Application Type: Broadcast, AV, Education, Worship, Conference & Live Production Control
FAQs

1. What is the AIDA CCU-IP used for?

The CCU-IP is a professional PTZ camera controller designed to provide precise pan, tilt, and zoom control for VISCA-serial and IP-compatible cameras in broadcast, live streaming, education, houses of worship, and corporate AV environments.

2. Which cameras are compatible with the CCU-IP?

The CCU-IP is compatible with VISCA serial and VISCA-over-IP cameras, including many AIDA Imaging PTZ models and other industry-standard VISCA-compatible PTZ cameras.

3. Can the CCU-IP control multiple cameras?

Yes. The CCU-IP is designed for multi-camera productions, allowing operators to manage and switch between multiple PTZ cameras from a single controller.

4. Does the CCU-IP support both serial and IP control?

Yes. The controller supports both VISCA serial and IP-based camera control, providing flexibility for traditional AV systems and modern network-based workflows.

5. Is the CCU-IP suitable for live production environments?

Yes. The CCU-IP is built for professional applications where fast, accurate camera control is essential, including live broadcasts, conferences, worship services, and hybrid events.

6. What makes the CCU-IP different from other PTZ controllers?

The CCU-IP combines professional joystick control, VISCA serial and IP compatibility, multi-camera management, robust construction, and intuitive operation, making it an ideal solution for demanding production environments.

7. What AIDA cameras work with the CCU-IP?

The CCU-IP is designed to control AIDA PTZ cameras that support VISCA serial or VISCA-over-IP communication, including many NDI, IP, and broadcast PTZ camera models across the AIDA range.
