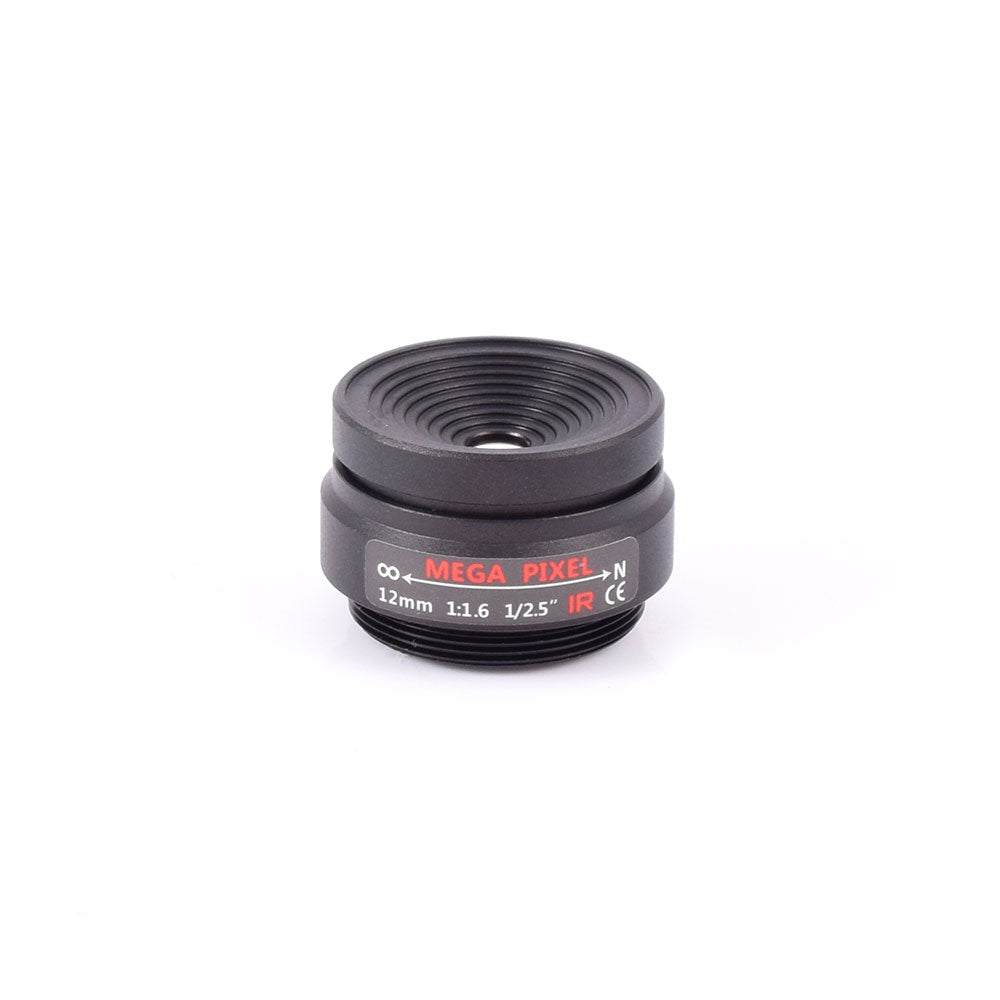

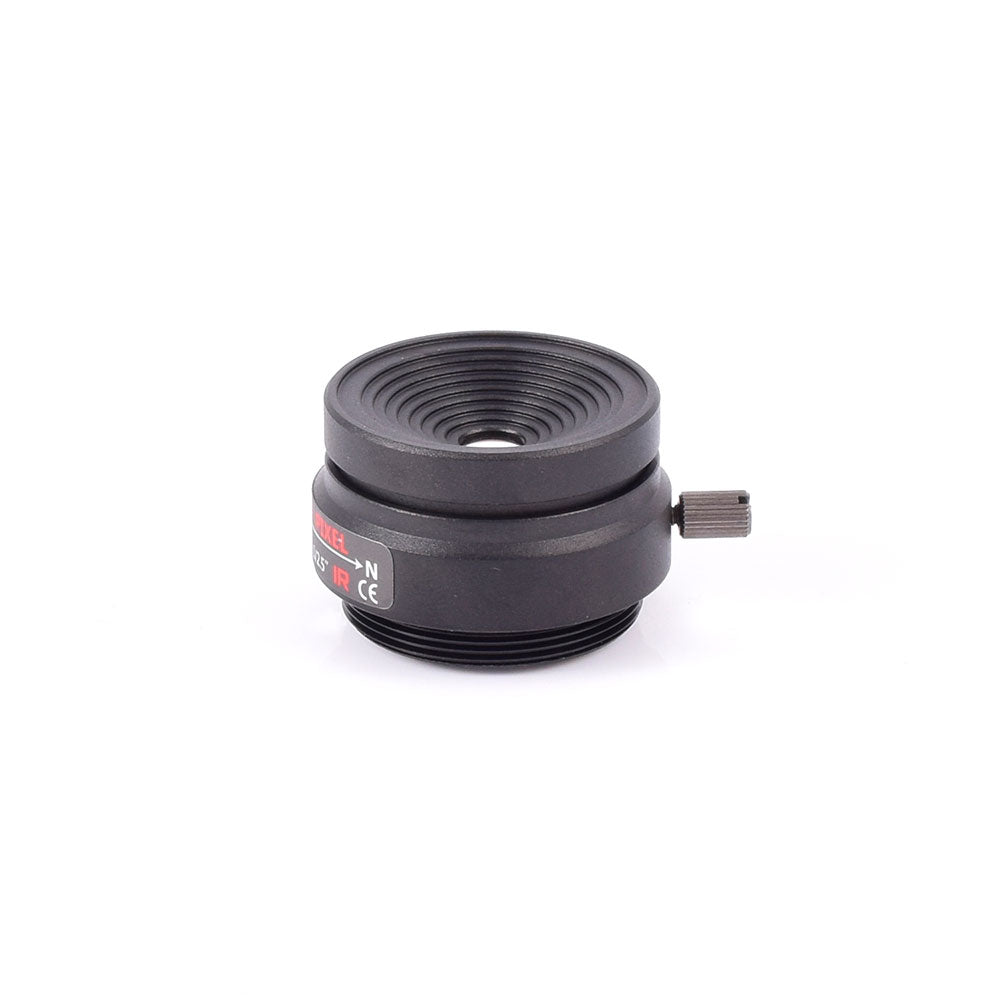

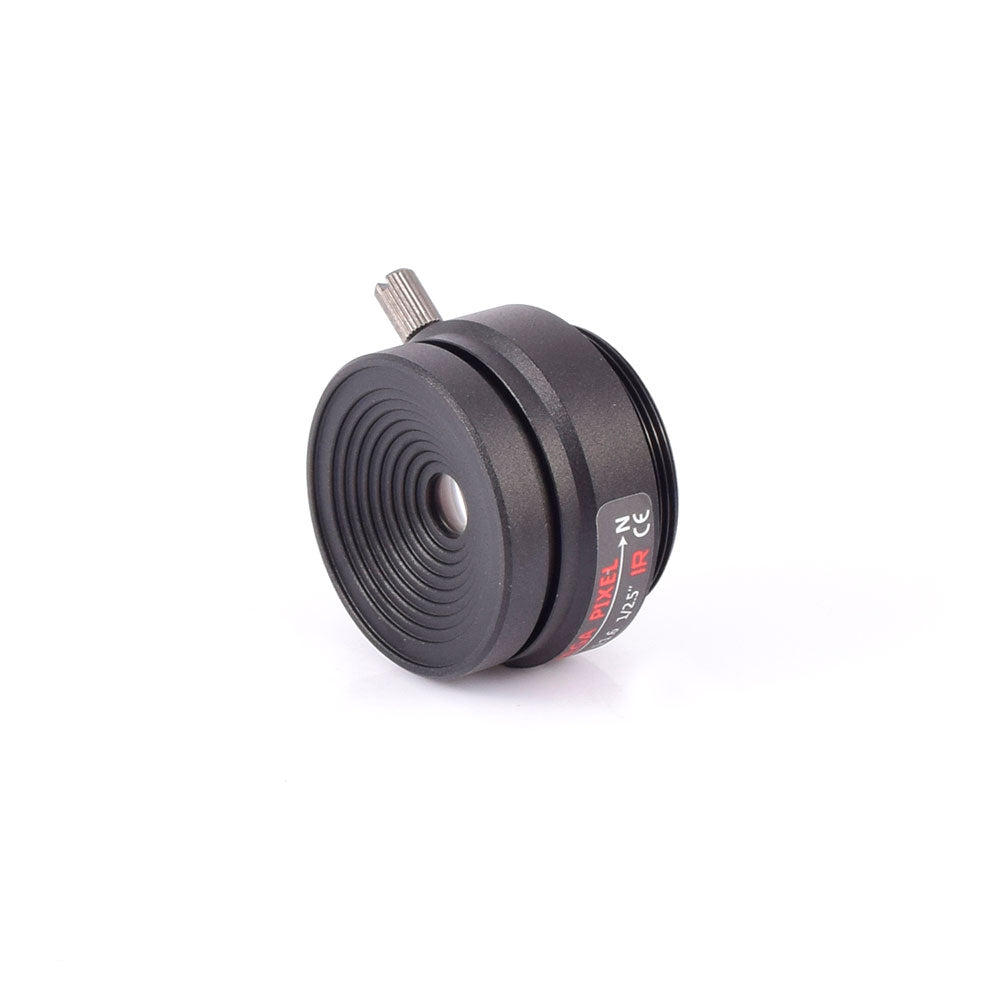

AIDA CS-12.0F Mount 12mm Fixed Focal Mega-Pixel Lens

AID-CS-12.0F
Sale price  $51.80 Regular price  $86.71
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.
FAST DELIVERY. FREE SHIPPING & returns.

In stock: 2 available

The CS-12.0F CS Mount 12mm Fixed Focal Mega-Pixel Lens from AIDA is optimized with the AIDA Imaging Full HD cameras with 1/3" Progressive CMOS sensors.

At AIDA Imaging, innovation is key to crafting our tried and tested quality imaging solutions. From concept to reality, AIDA Imaging meticulously creates products that are applicable to various solutions. All AIDA Imaging devices are proudly designed in the United States and manufactured with the highest practice and quality in South Korea.

Product overview

Key product features

- Optimized and tuned with Full HD Cameras.
- Compatible with 1.3 to 5MP Cameras.
- CS-Mount.
- 1/2.5" Optical Format.
- Fixed Iris Range.

Data & specifications sheet

GENERAL
• Model: CS-12.0F
• Product Type: Fixed Focal Mega-Pixel Lens
• Manufacturer: AIDA Imaging

OPTICS
• Focal Length: 12.0 mm
• Lens Type: Fixed Focal Length
• Iris Type: Fixed Iris
• Megapixel Rated: Yes
• Optimised for Full HD Cameras

MOUNT
• Mount Type: CS Mount

SENSOR COMPATIBILITY
• Optical Format: 1/2.5"
• Optimised for 1/3" Progressive CMOS Sensors
• Compatible with 1.3MP to 5MP Cameras

APPLICATIONS
• Broadcast Production
• Professional AV Systems
• Live Streaming
• Lecture Capture
• Studio Installations
• Long-Distance Monitoring
• Fixed Camera Installations

COMPATIBILITY
• AIDA Full HD Camera Series
• AIDA POV Cameras
• AIDA Box Cameras
• CS-Mount Cameras
• Cameras with 1/3" CMOS Sensors
• 1.3MP to 5MP Camera Systems

FAQs

1. What is the AIDA CS-12.0F?

The AIDA CS-12.0F is a 12mm fixed focal length megapixel lens designed for use with compatible CS-mount cameras, particularly AIDA Full HD camera systems.

2. What mount type does the CS-12.0F use?

The lens uses a standard CS-mount, making it compatible with cameras designed to support interchangeable CS-mount optics.

3. Which cameras is the CS-12.0F compatible with?

The CS-12.0F is optimised for AIDA Full HD cameras equipped with 1/3" progressive CMOS sensors and is compatible with CS-mount cameras using image sensors from 1.3MP to 5MP resolution.

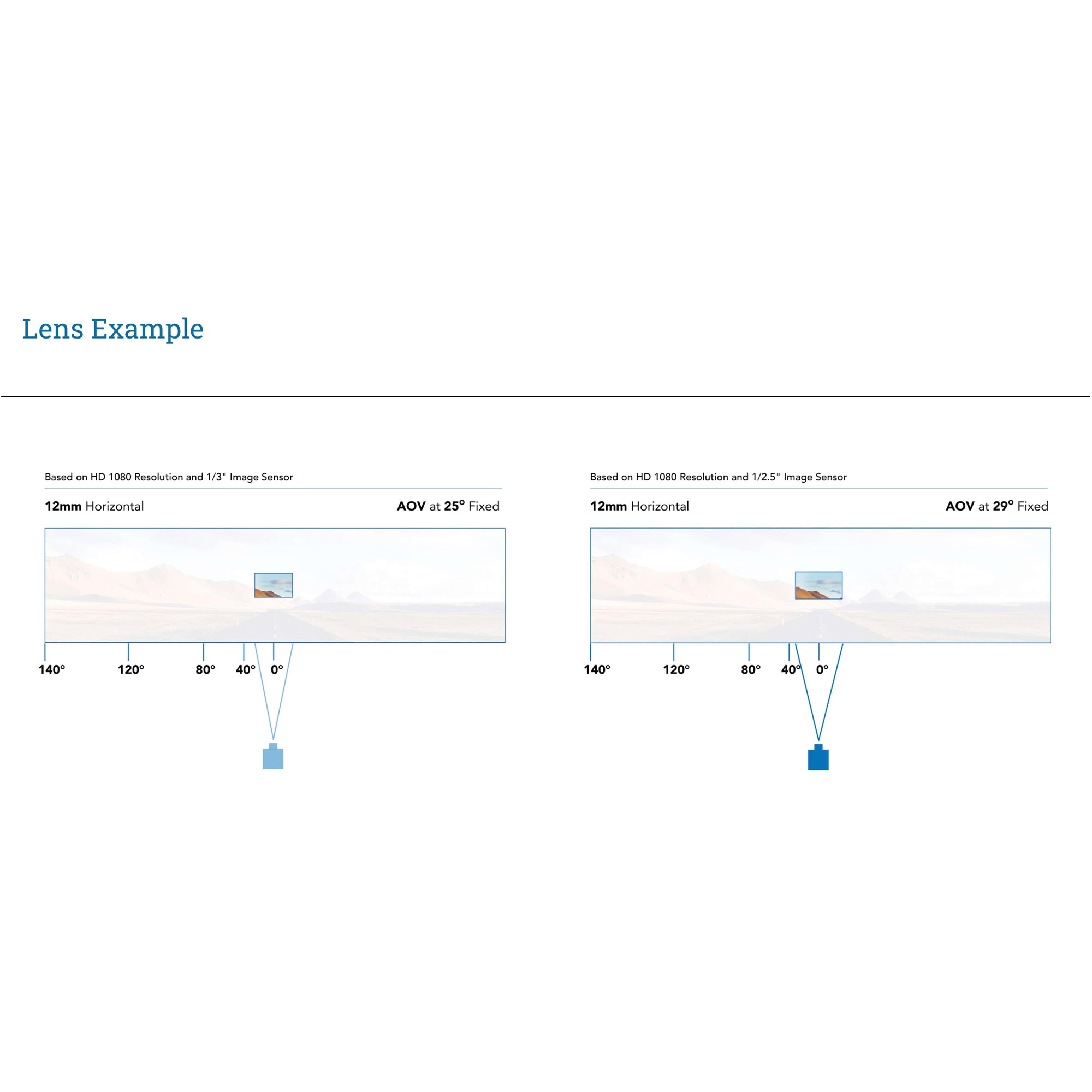

4. What field of view does a 12mm lens provide?

A 12mm focal length generally provides a narrower field of view than 6mm or 8mm lenses, making it suitable for tighter framing, viewing subjects at greater distances and applications requiring greater image magnification. The exact field of view depends on the camera sensor size.

5. Is this a zoom lens?

No. The CS-12.0F is a fixed focal length lens and does not offer optical zoom functionality.

6. Is the lens suitable for megapixel cameras?

Yes. The lens is megapixel rated and designed for use with cameras in the 1.3MP to 5MP range.

7. Is the iris adjustable?

No. The manufacturer specifies a fixed iris design.

8. What applications is the CS-12.0F best suited for?

The lens is well suited to broadcast environments, lecture capture, professional AV installations, long-distance viewing applications and fixed camera systems where tighter framing is required.
