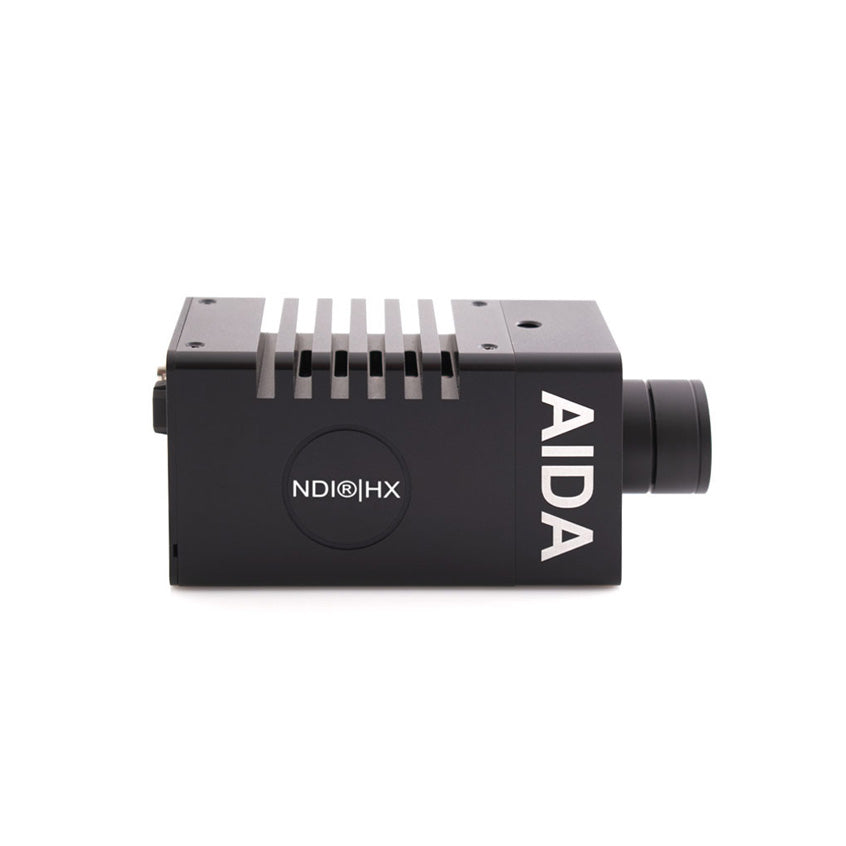

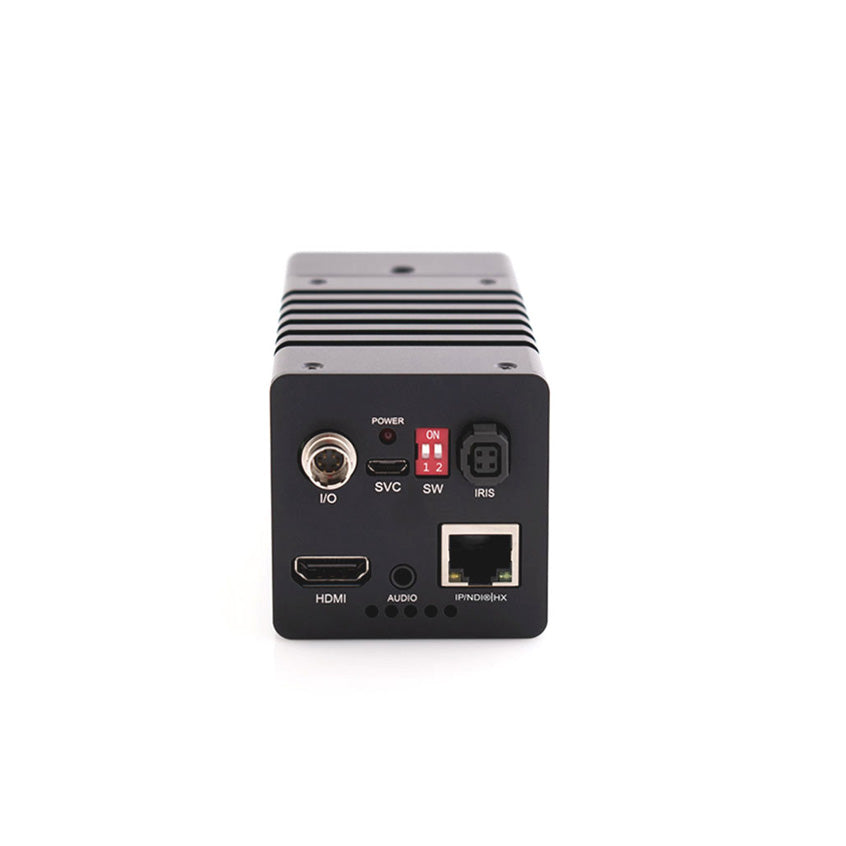

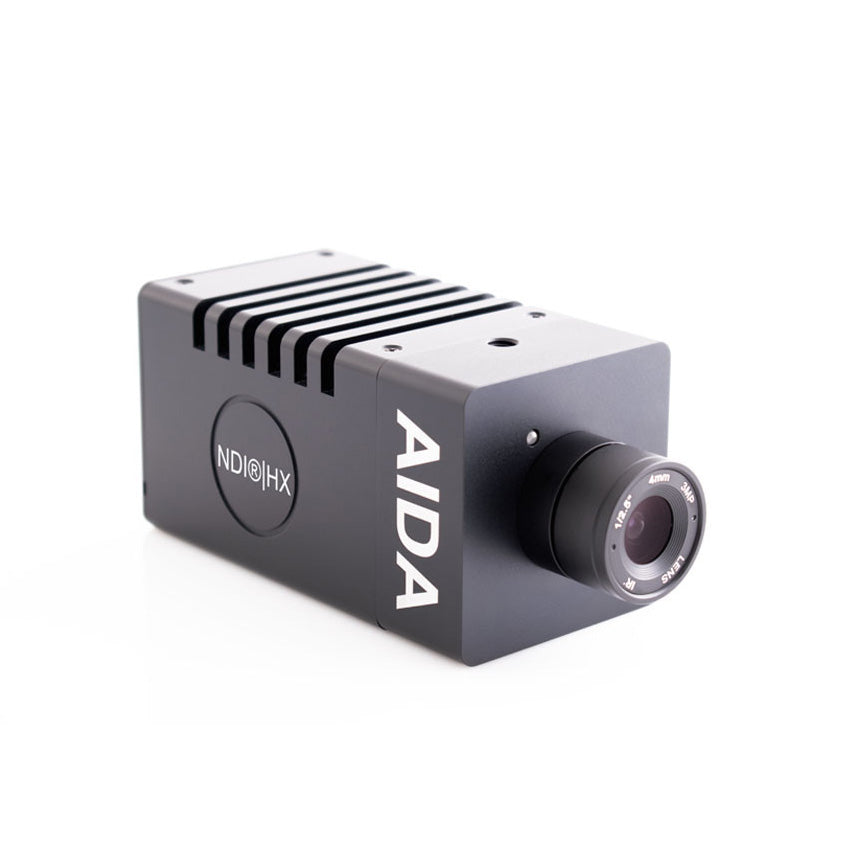

AIDA HD-NDI-200 FHD NDI®|HX/HDMI/IP/SRT PoE POV Camera
In stock: 2 available
Couldn't load pickup availability
The HD-NDI-200 is AIDA's new answer to our renowned POV lineup. Providing Newtek's NDI | HX2, the HD-NDI-200 delivers crisp Full-HD under various lighting conditions with latency comparable to standard HDMI! The camera can output HDMI, RTSP, RTMP, and NDI | HX2 simultaneously. The HD-NDI-200 also maintains AIDA's familiar form factor, allowing for standard tripod mounting points on the top and bottom of the camera. It also comes equipped with a 3.5 mm audio jack to embed TRS Stereo Audio over RJ45 NDI | HX2. The HD-NDI-200 is a perfect starting point for live streaming or integration into any existing workflow that uses NDI.
NDI | HX2, NewTek's innovative Network Device Interface technology, is a royalty-free standard that enables IP video workflows over Ethernet networks. NDI | HX2 is a bi-directional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low-latency, frame-accurate video and audio in real-time. The NDI | HX2 encoding algorithm is resolution- and frame rate-independent, supporting up to 4K and beyond, as well as multi-channel, floating-point audio up to 16 channels and beyond. NDI | HX2 also includes tools to implement video access and grouping, bi-directional metadata, tally, and more
Product overview
Key product features
- Full HD 1080p60 video capture using a 1/2.8" progressive scan CMOS sensor for clear, high-quality image reproduction.
- Supports NDI®|HX2, HDMI, RTSP and RTMP outputs, allowing flexible integration into modern IP and AV workflows.
- Simultaneous video output across supported protocols for streamlined production and streaming applications.
- Integrated web-based user interface for remote camera configuration and image parameter adjustment over a network.
- 3.5 mm audio input with embedded audio support over NDI®|HX2 for simplified audio and video transport.
- Compact POV camera design with tripod mounting points on both the top and bottom for installation flexibility.
- RS485 communication support via the OSD breakout cable for system integration and camera control.
Ideal for live streaming, broadcast production, corporate AV, education, houses of worship and video conferencing environments.
Data & specifications sheet
Image Sensor Sensor Type: 1/2.8" Progressive Scan CMOS
Maximum Resolution: 1920 × 1080 (Full HD)
Maximum Frame Rate: 1080p60
Video Outputs
- NDI®|HX2 Output
- HDMI Output
- RTSP Streaming Output
- RTMP Streaming Output
- Simultaneous Multi-Protocol Output Support
Audio
- 3.5 mm TRS Stereo Audio Input
- Embedded Audio over NDI®|HX2
Control & Networking
- Web Browser Configuration Interface
Remote Image Control over IP Network
- RS485 Communication Support
- NDI® Workflow Compatible
Physical
- Compact POV Camera Form Factor
- Top and Bottom Tripod Mounting Points
Typical Applications
- Live Streaming
- Broadcast Production
- Corporate AV
- Education & Lecture Capture
- Houses of Worship
- Video Conferencing
Product Brochure
