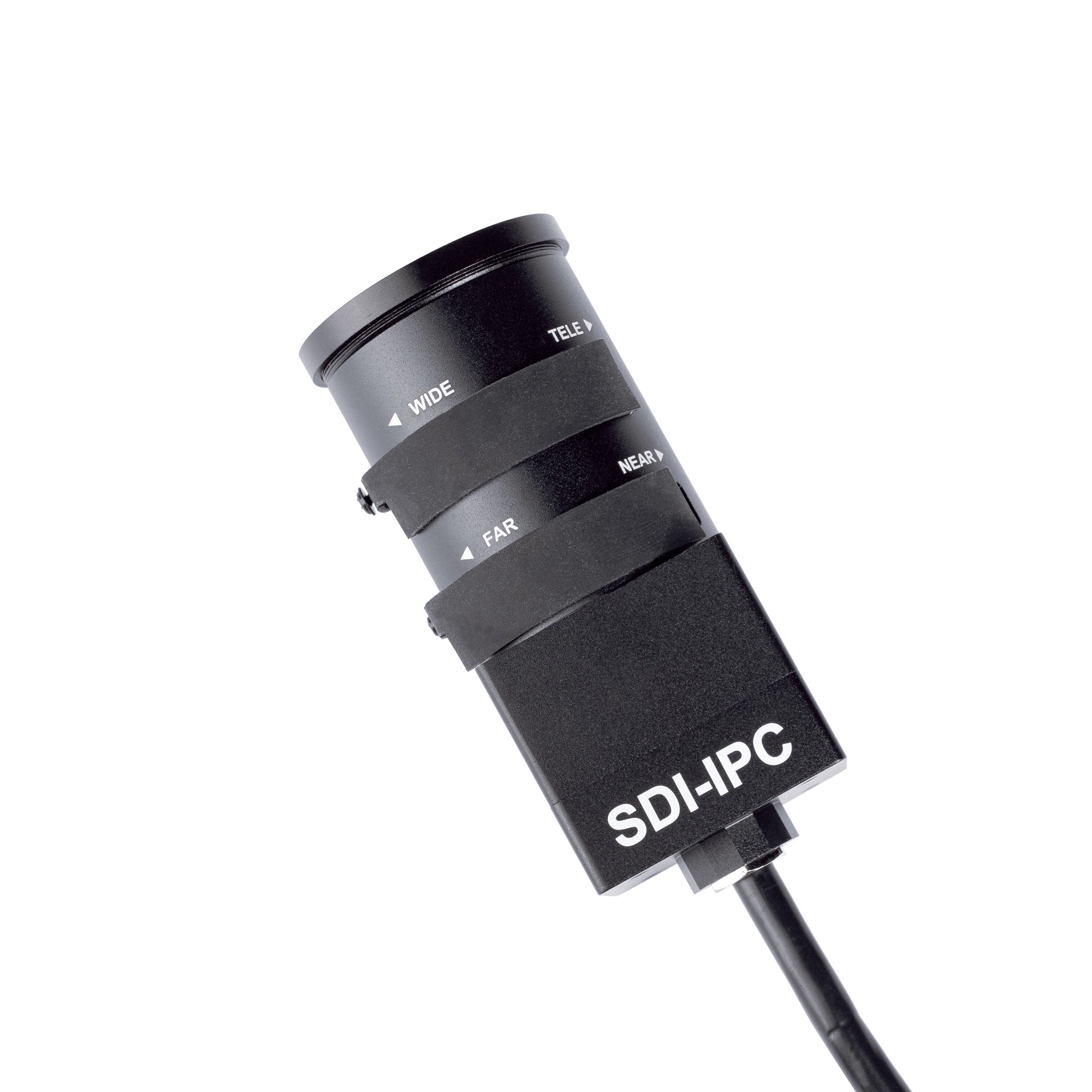

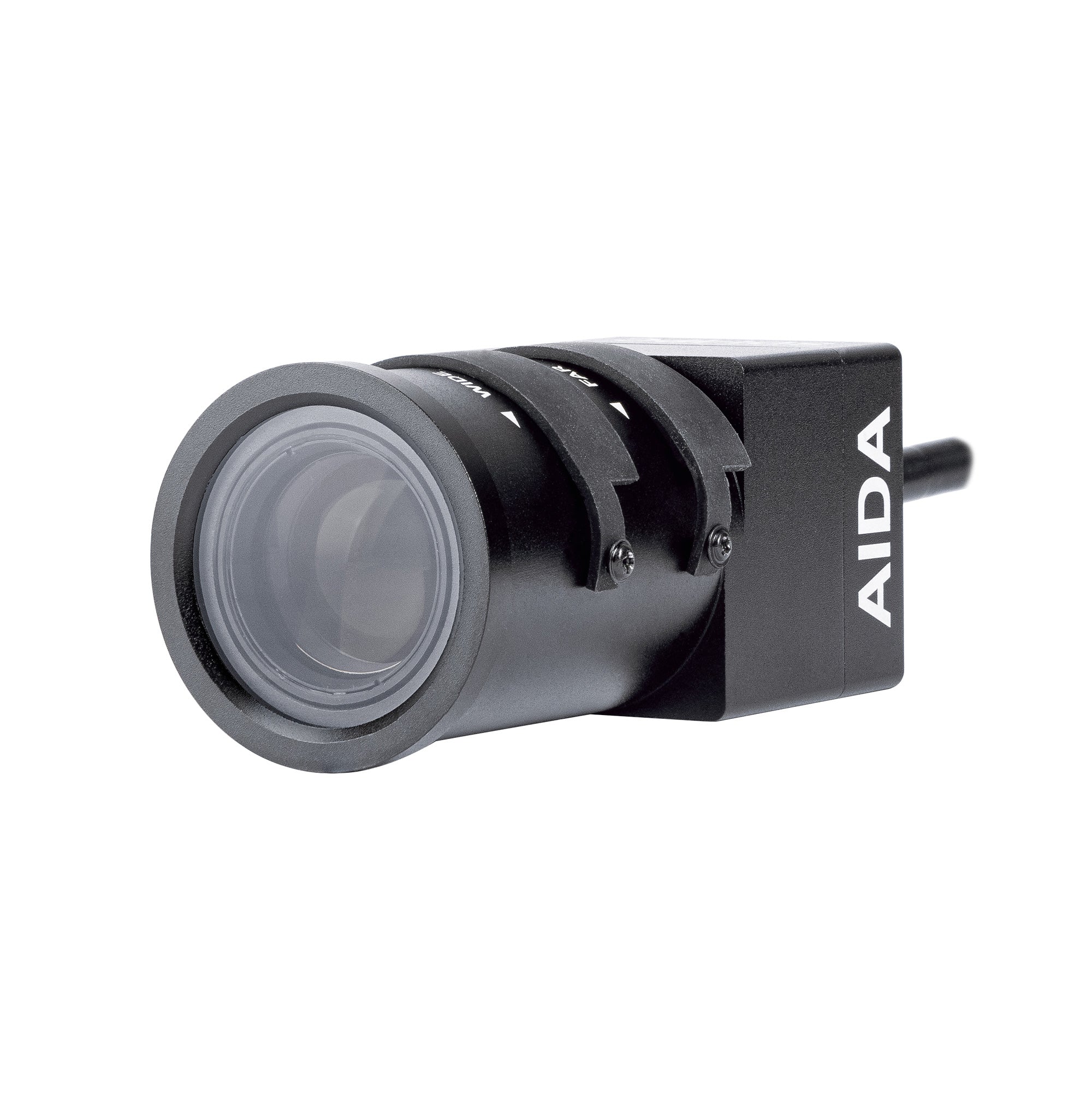

AIDA Full HD 3G-SDI with IP Control, Varifocal Lens POV Camera

AID-HD3G-IPC-TF
$1,038.00
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.
FAST DELIVERY. FREE SHIPPING & returns.
PRE-ORDER (SHIPS IN 3-4 WEEKS)

unavailable

PRE-ORDER (SHIPS IN 3-4 WEEKS)

In an industry where SDI infrastructure remains crucial for delivering uncompressed video quality and low latency, the Aida HD3G-IPC-TF POV Camera with Varifocal Lens provides a cutting-edge update to your broadcasting setup. Part of the SDI-IPC series, this camera is designed to enhance POV SDI workflows with high-quality Sony CMOS Imaging Sensors, versatile form factors, and the convenience of VISCA over IP communication.

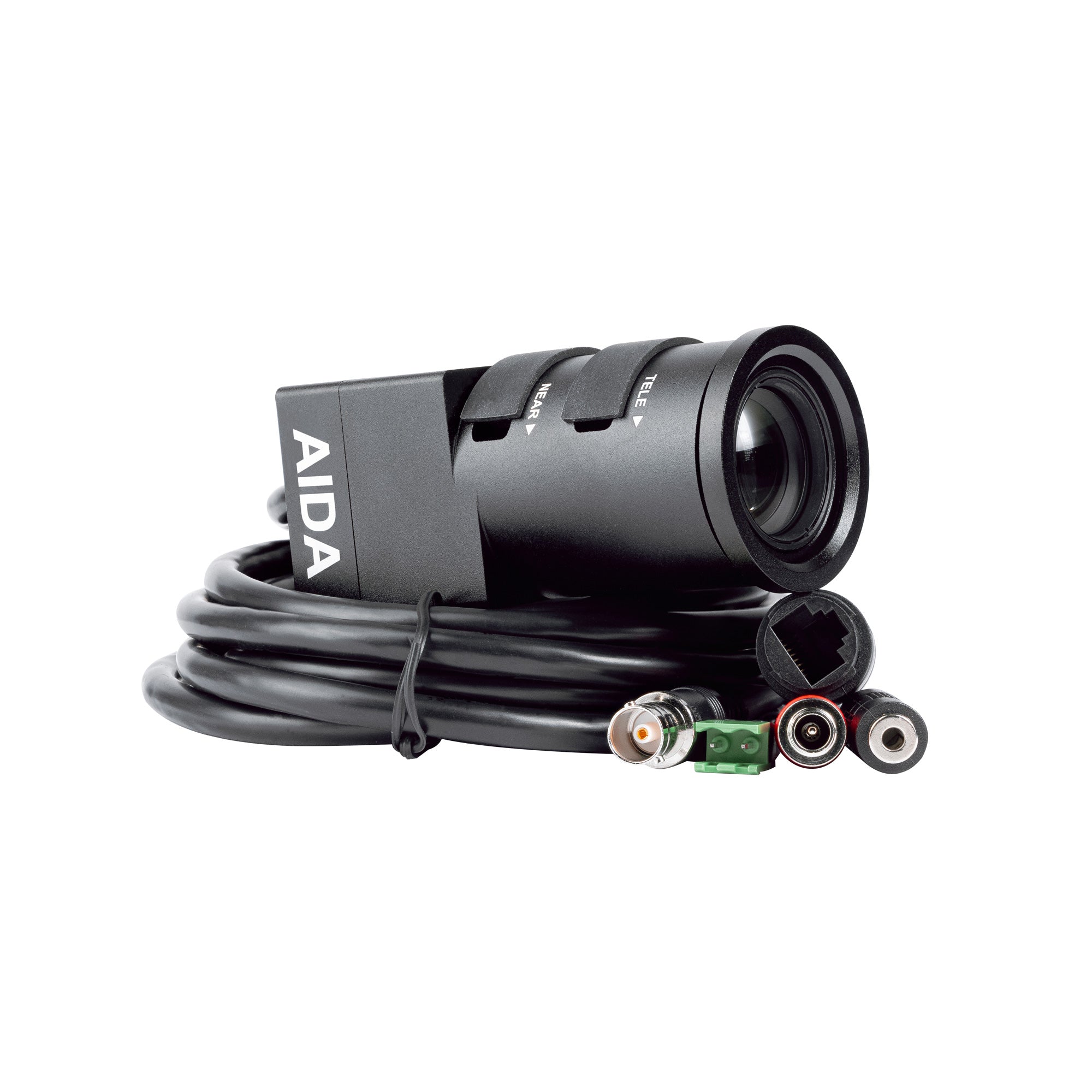

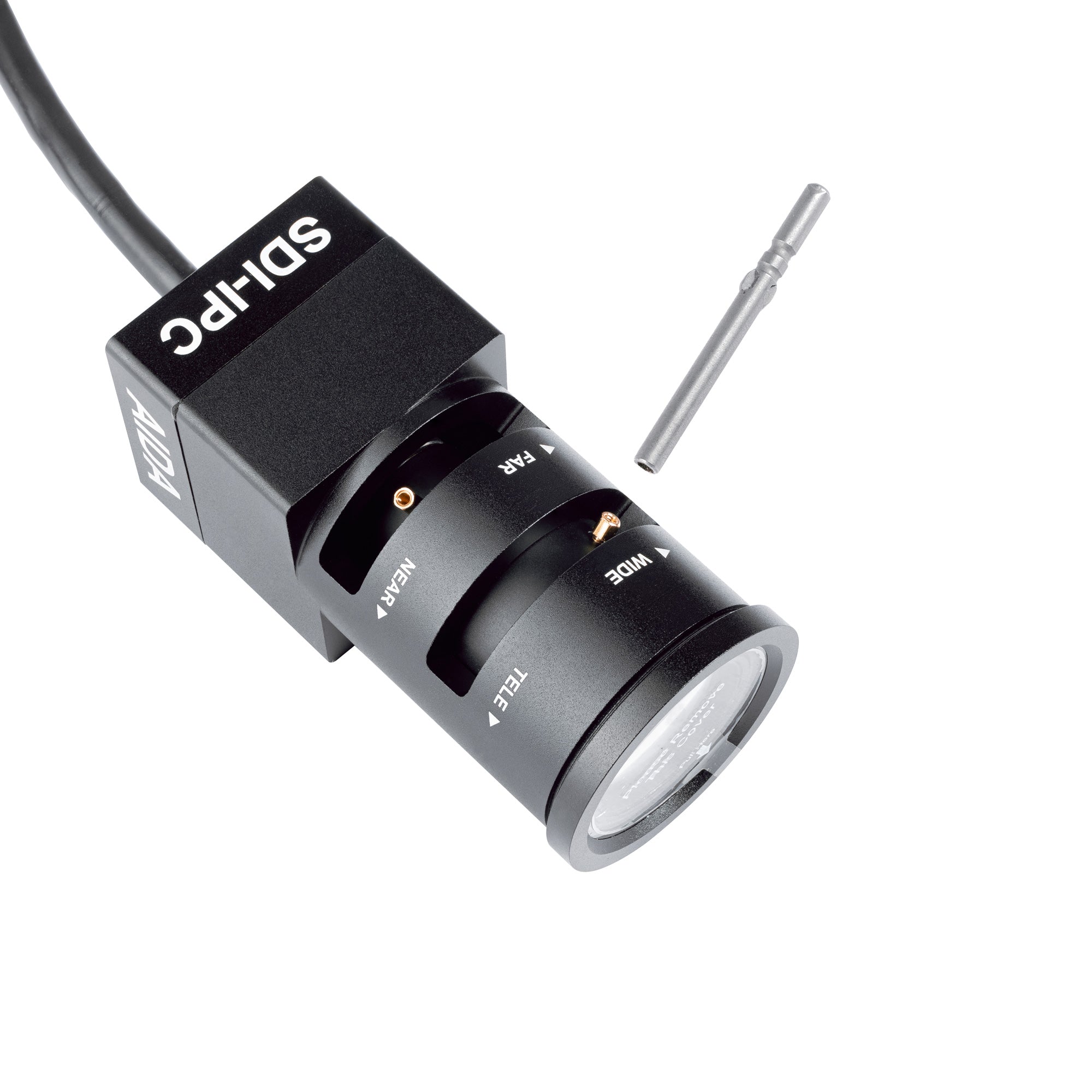

The HD3G-IPC-TF features a 3G-SDI output and is IP54 rated for weatherproof streaming, making it suitable for various environmental conditions (excluding submersion). Its varifocal lens is adjustable with a hex tool and can be securely locked into place, offering flexibility and precision in your shots. The camera includes 3ft cabling to protect inputs and offers 1/4 20” mounting on both the top and bottom, ensuring secure and convenient installation options.

With VISCA over IP communication, you can eliminate serial wiring and streamline your setup, managing video, control, and power through just two cables. Upgrade to the Aida HD3G-IPC-TF POV Camera with Varifocal Lens and experience the perfect combination of flexibility, advanced technology, and reliable performance in your broadcast operations.

Product overview

Key product features

'- Full-HD 1/2.8” Sony Progressive Scan CMOS sensor capable of 1080 60p through 3G-SDI
- VISCA over IP compatible for hardware and software solutions using that protocol. (VISCA UDP, SONY VISCA over IP)
- Versatile designs with tripod mounts for easy and unique shot creation.
- PoE+ adaptable with adapter (comes with purchase of the camera)
- Variants for weatherproofed cameras, capable of IPV54 and above rating.
- CS-mount lens, M12 mount lens, and varifocal weatherproof options available.
- Small form-factor and rugged designed makes all video streaming applications possible
- Perfectly suited for indoor or outdoor shots for new or existing workflows.
- Fits any C or CS Mount Inter- changeable lens
- Standard discreet POV look -1/4 20” mounting on top and bottom

Data & specifications sheet

'- Image Sensor: 1/2.8” Progressive CMOS
- Sensor Size: 5.640mm x 3.216mm (16.9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.9 μm (H) x 2.9 μm (V)
- Resolution:
- 1080p, 1080i, 720p
- 1080 60p/59.94/50p/30p/29.97p/25p 24p
- 1080 60i/59.94i/50i 720 60p/59.94p/50p
- Output: 3G-SDI
- Colour Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.2Lux (day), 0.1Lux (Night)
- White Balance: Auto & Manual (9000 - 11,000 K)
- Audio Input: 3.5mm TRS Stereo Input, Embed over SDI
- Lens: Custom Varifocal 5-50mm Lens HFOV: Wide: 51° Tele’d: 6.1°
- Camera Control: Protocol: VISCA Over IP
- Operation Temp: -10°C~50°C
- Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)
- Power Draw: 6W MAX
