AIDA HD3G-NDI-200 FHD NDI®|HX/IP/SRT/3G-SDI PoE and IP Control POV Camera

AID-HD3G-NDI-200
$1,233.18
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.
FAST DELIVERY. FREE SHIPPING & returns.
PRE-ORDER (SHIPS IN 3-4 WEEKS)

unavailable

PRE-ORDER (SHIPS IN 3-4 WEEKS)

The Aida HD3G-NDI-200 introduces a more straightforward, more effective solution that brings any SDI workflow into the world of new IP connectivity and NDI. Boasting a familiar form factor and performance similar to our HD-NDI-200, the HD3G-NDI-200 simultaneously delivers NDI HX and 3G-SDI. This means you can keep your 3G-SDI cable while simplifying connections by replacing serial and power cables with PoE+ for power, control, and video over a single Ethernet cable!

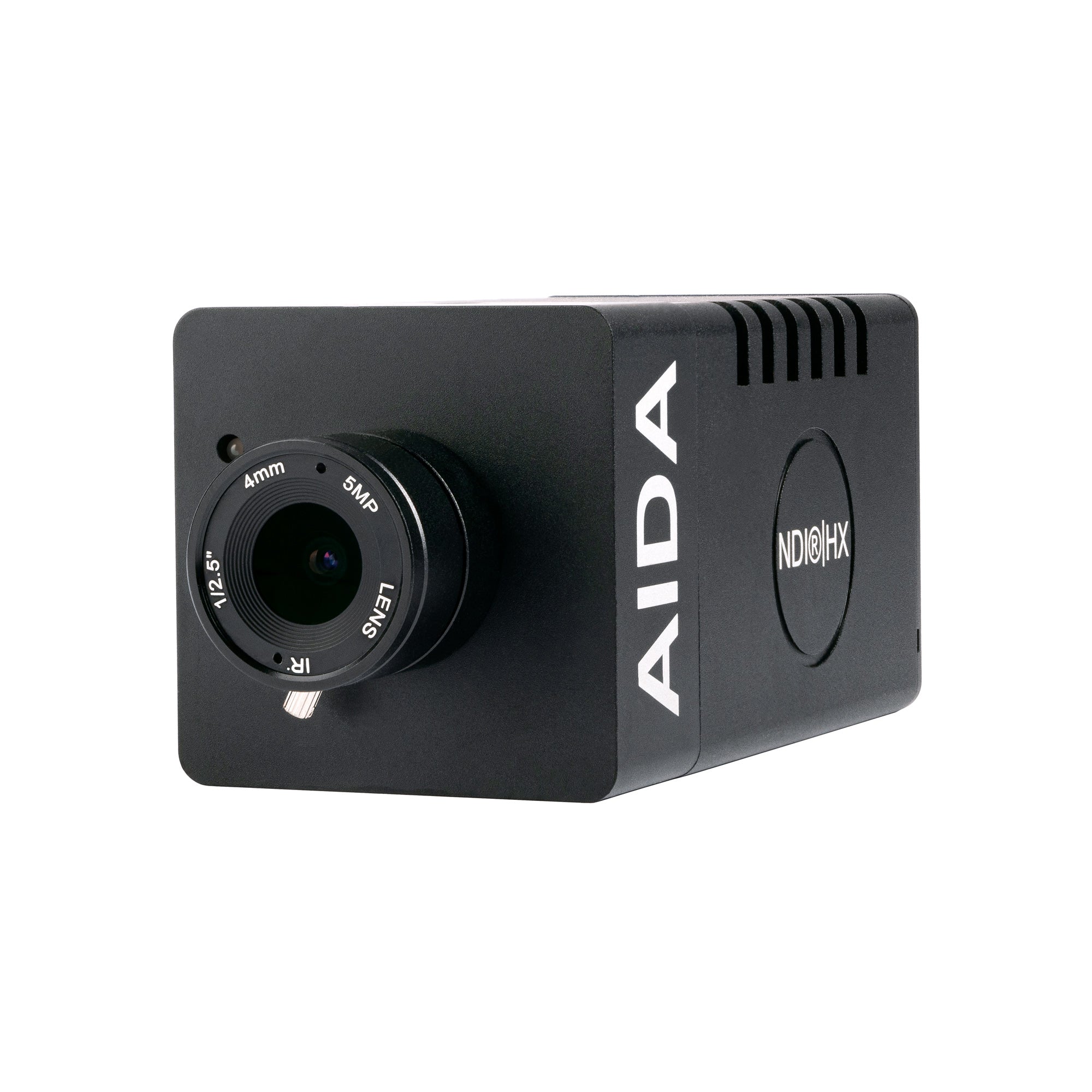

Designed with cost-effectiveness in mind, the HD3G-NDI-200 is one of the smallest form factor dual SDI/IP broadcast-grade cameras on the market. Its adaptability is another standout feature, with an interchangeable 4mm CS-mount lens that can be easily swapped to suit your needs. The camera also includes both top and bottom 1/4 20‚ mounting solutions, offering flexibility in setup.

The HD3G-NDI-200 leverages the power of both SDI and NDI HX, providing simultaneous outputs to enhance your existing SDI workflow. Bring AIDA's trusted IP streaming and NDI HX into your program, preview, or control setup for a more versatile and efficient broadcast solution.

Product overview

Key product features

- Full-HD 1/2.8” Progressive Scan CMOS sensor capable of 1080 60p NDI® HX and 3G-SDI video.
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
- Versatile and discreet design perfect for sleek, multi-leveled image capturing in most scenarios.
- OSD breakout cable provides power or control over serial RS485 communication.
- Flawlessly relays multi-channel embedded audio via NDI® HX2
- Perfectly suited for upgrading existing 3G-SDI workflows to IP / NDI® HX capabilities.

Data & specifications sheet

- Image Sensor: 1/2.8” Progressive CMOS
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.9 μm (H) x 2.9 μm (V)
- Resolution: 1080p, 1080i, 720p
- Resolution Rate:
- 1080 60p/59.94/50p/30p/29.97p/25p/24p/23.98p
- 1080 60i/59.94i/50i
- 720 60p/59.94p/50p/30p/29.97p/25p
- Output: 3G-SDI, RJ45, NDI® HX2
- IP Rate:
- 1920 x 1080 @ 3~60
- 1280 x 720 @ 3~60
- 1024 x 576 @ 3~60
- 620 x 360 @ 3~60
- Color Space: 4:2:2 (YCbCr) 10bit
- Lens: C/CS Mount (Default 4mm HD Lens)
- Input: 3.5mm TRS Stereo Audio Port
- Sample Rate: 16/24/32 Bits
- Camera Control:
- Protocol: VISCA RS485, VISCA Over IP
- Control: OSD Button or Web UI
- Operation Temp: 32°F - 104°F
- Dimensions: 54mm x 54mm x 127mm / 2.125” x 2.125” x 5” (With default 4mm Lens)
- Power: 12VDC (+9 - +15VDC)/ POE

FAQs

1. What is the AIDA HD3G-NDI-200 designed for?

The HD3G-NDI-200 is a broadcast-grade Full HD POV camera designed for live production, streaming, AV integration and professional video workflows. It combines traditional 3G-SDI connectivity with modern NDI® HX network video technology, making it ideal for facilities transitioning from SDI to IP-based production.

2. Can the HD3G-NDI-200 output SDI and NDI® HX at the same time?

Yes. The camera provides simultaneous 3G-SDI and NDI® HX outputs, enabling integration with existing SDI infrastructure while also supporting modern IP-based video workflows.

3. Does the HD3G-NDI-200 support Power over Ethernet (PoE+)?

Yes. PoE+ support allows power, control and video data to be delivered over a single Ethernet connection, helping to reduce cabling complexity and simplify installations.

4. Can the lens be changed on the HD3G-NDI-200?

Yes. The camera features an interchangeable 4mm CS-mount lens, allowing users to select alternative lenses to suit different field-of-view and application requirements.

5. Is the HD3G-NDI-200 suitable for upgrading an existing SDI workflow?

Yes. The HD3G-NDI-200 is specifically designed to help organisations add IP and NDI® HX capabilities to established SDI installations without replacing existing SDI infrastructure. This provides a practical migration path towards network-based video production.
