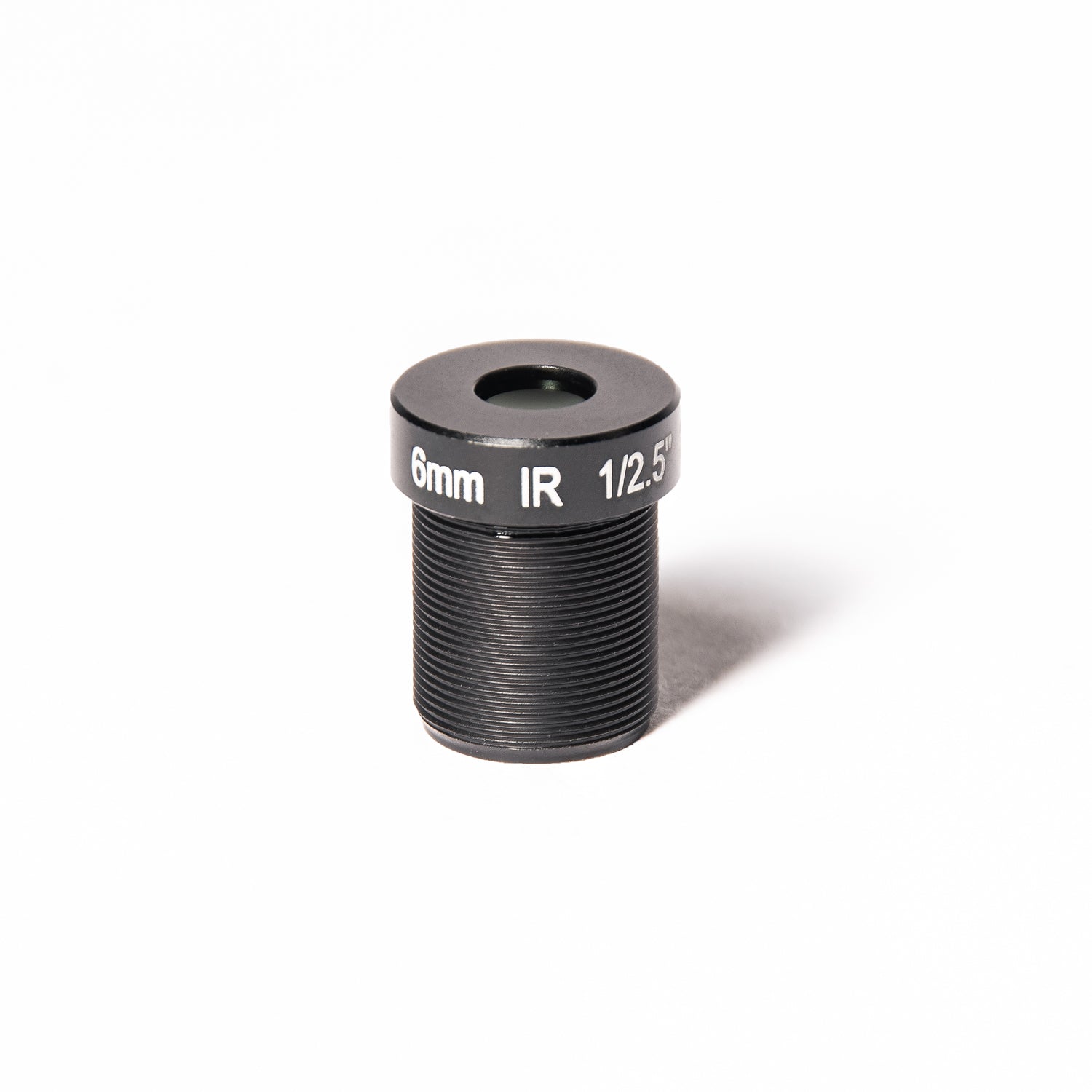

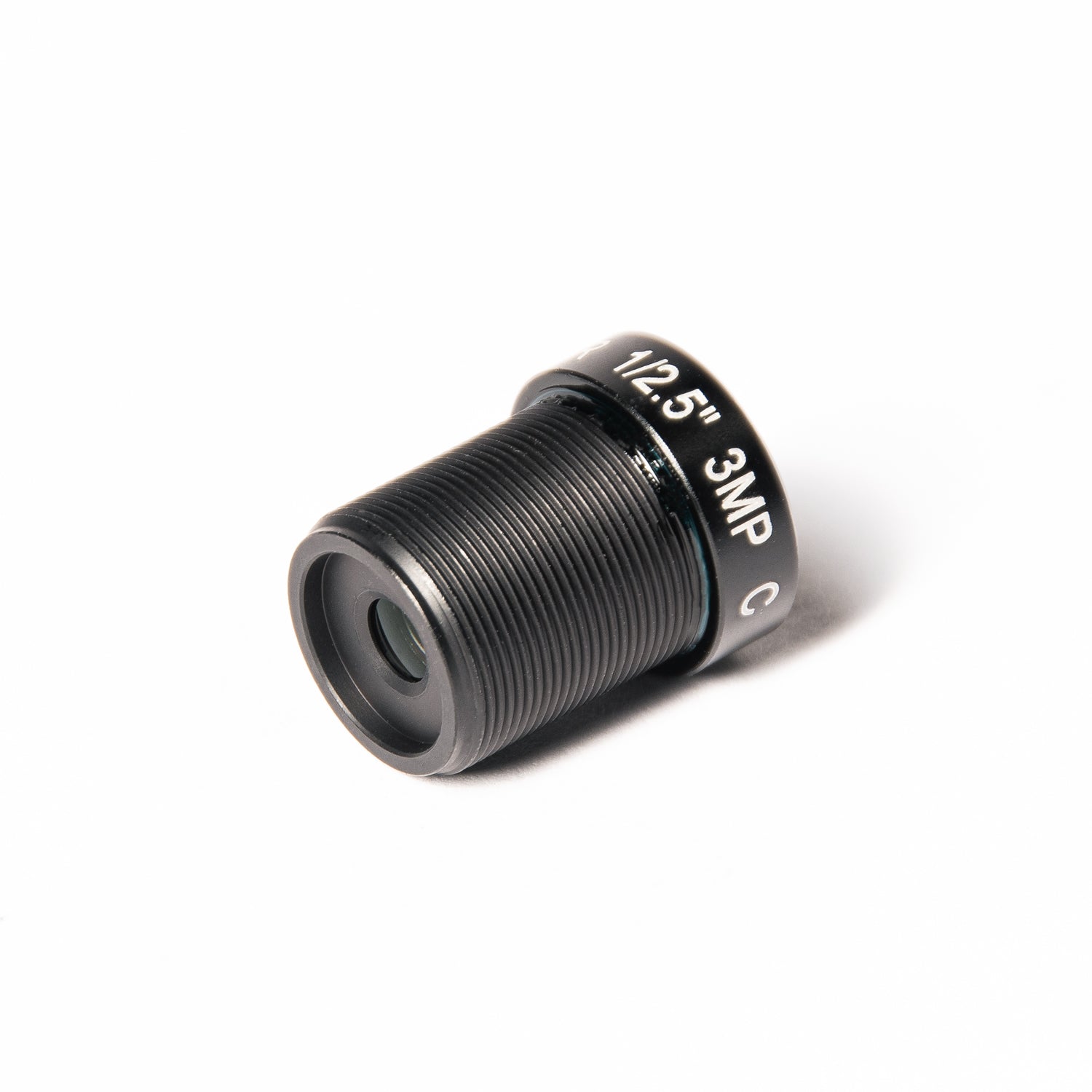

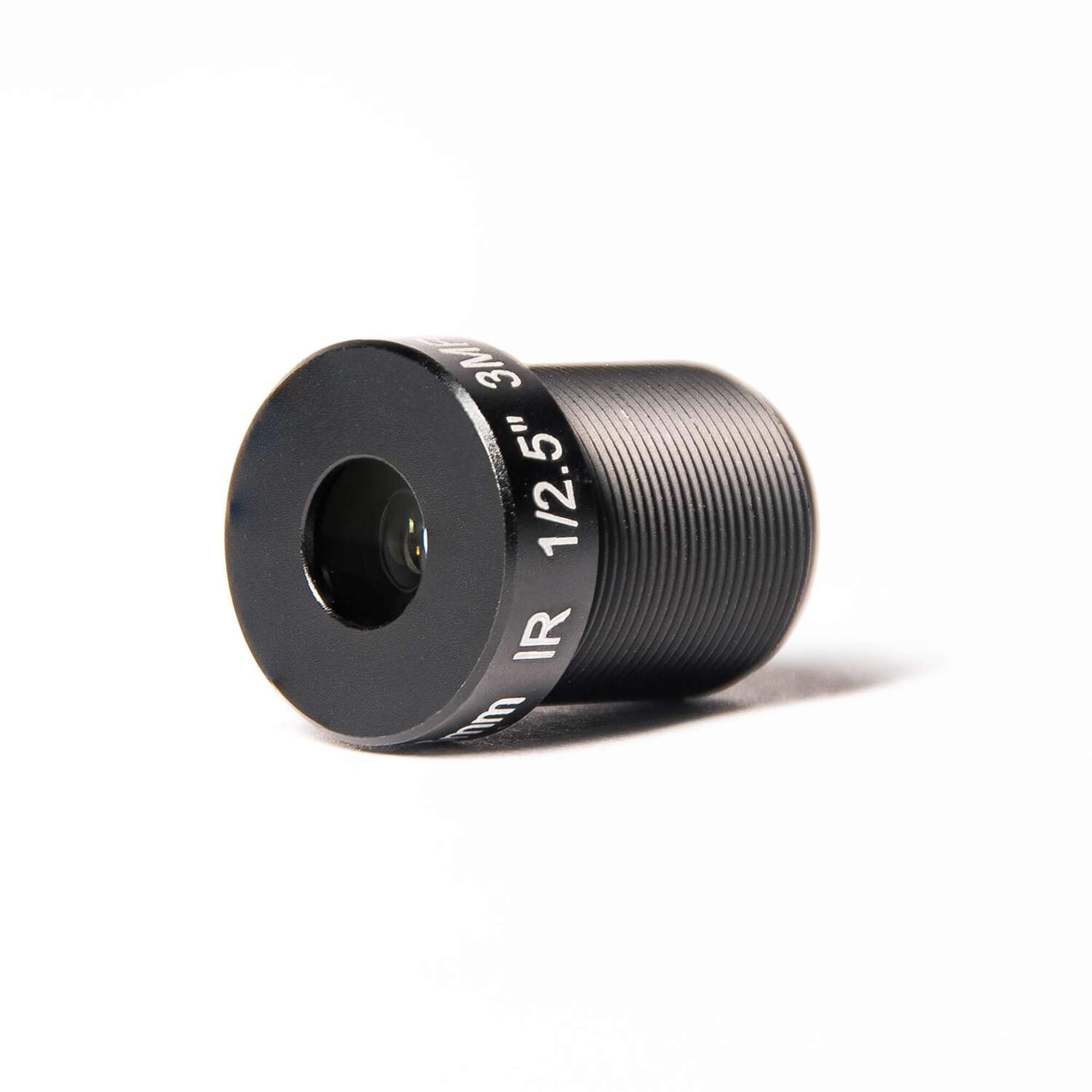

AIDA M12-6.0F 6.0mm HD Megapixel M12 Mount Lens
In stock: 2 available
Couldn't load pickup availability
The M12-6.0F lens is specifically designed to enhance the performance of AIDA's HD-NDI-MINI by delivering a narrower horizontal field of view (HFOV) of approximately 60º. It is compatible with any M12-type camera that supports full-HD resolution and possesses a sensor size of 1/2.5 or smaller.
Product overview
Key product features
- Optimised for the HD-NDI-MINI
- M12 mount
- 6mm focal length
- Aperture F2.4
- Horizontal field of view ~60°
Data & specifications sheet
OPTICAL
- Back Focal Length: 8.1mm
- Focal Length: 6MM
- F-Stop: F2.4
- Focus Operation: Manual
- FOV: 1/2.5” : HFOV 60°, 1/3” : HFOV 52°
- Image Format: Max 1/2.5” Sensor
- Megapixel Count: 3M
- TV Distortion: -20% with 1/25” Sensor
PHYSICAL
- Mount Type: M12
- Operation Temp: -20°C – 60°C
- Dimensions: 45.9mm x 35.4mm
- Weight: 2g
FAQs
1. What is the AIDA M12-6.0F used for?
The M12-6.0F is a 6mm fixed focal lens designed to enhance compatible AIDA cameras by providing a narrower field of view for applications that require greater subject detail at a distance.
2. Which AIDA cameras is the M12-6.0F compatible with?
The M12-6.0F is specifically designed for the AIDA HD-NDI-MINI and is compatible with M12-mount cameras that support Full HD resolution and use a 1/2.5" or smaller sensor.
3. What field of view does the M12-6.0F provide?
The lens delivers an approximate 60° horizontal field of view, making it suitable for applications that require a tighter image than wider-angle lenses.
4. Is the M12-6.0F suitable for broadcast and streaming applications?
Yes. The lens is designed for use with professional video cameras in broadcast, live streaming, monitoring, and AV installations where a more focused viewing angle is required.
5. Can the M12-6.0F improve subject visibility at longer distances?
Yes. The narrower field of view helps bring distant subjects closer within the frame, making it useful when additional image detail is required without changing camera position.
6. What makes the M12-6.0F different from other camera lenses?
The M12-6.0F is purpose-built for compatible AIDA camera systems, providing a fixed 6mm focal length, Full HD image compatibility, and a tighter viewing angle for professional imaging applications.
7. What AIDA products work with the M12-6.0F?
The M12-6.0F is optimised for the AIDA HD-NDI-MINI and may also be compatible with other AIDA cameras that use an M12 lens mount and support Full HD imaging with a 1/2.5" sensor or smaller.
