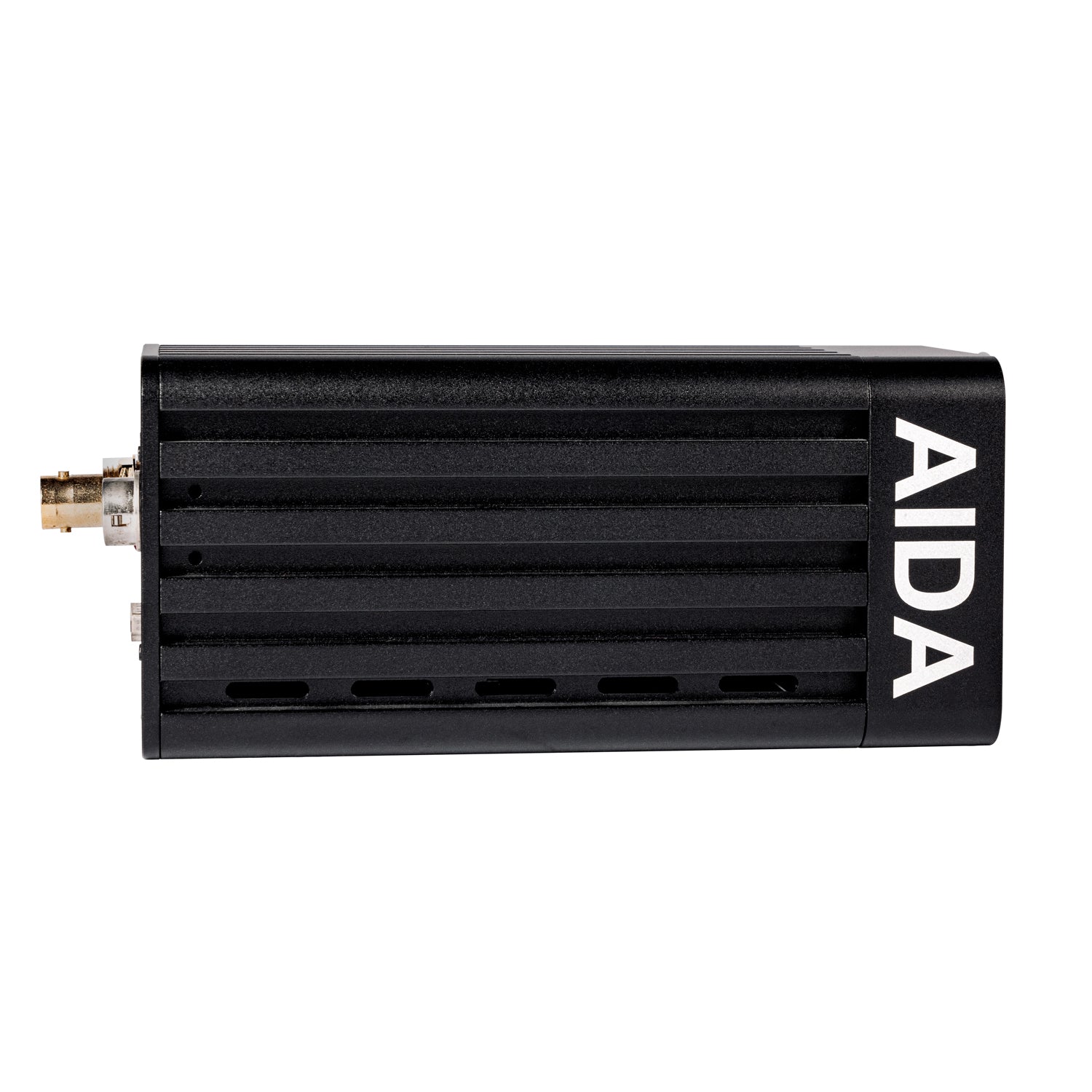

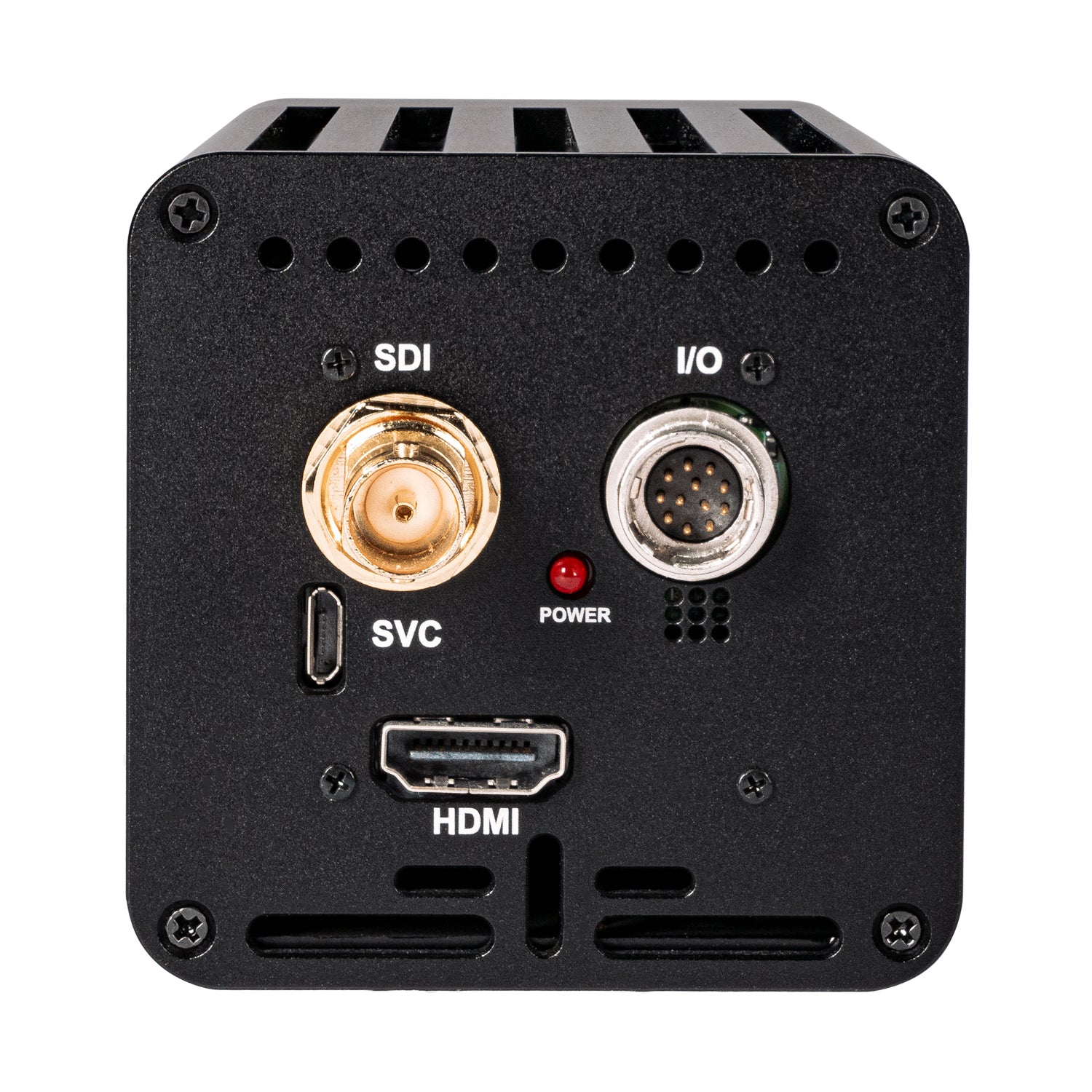

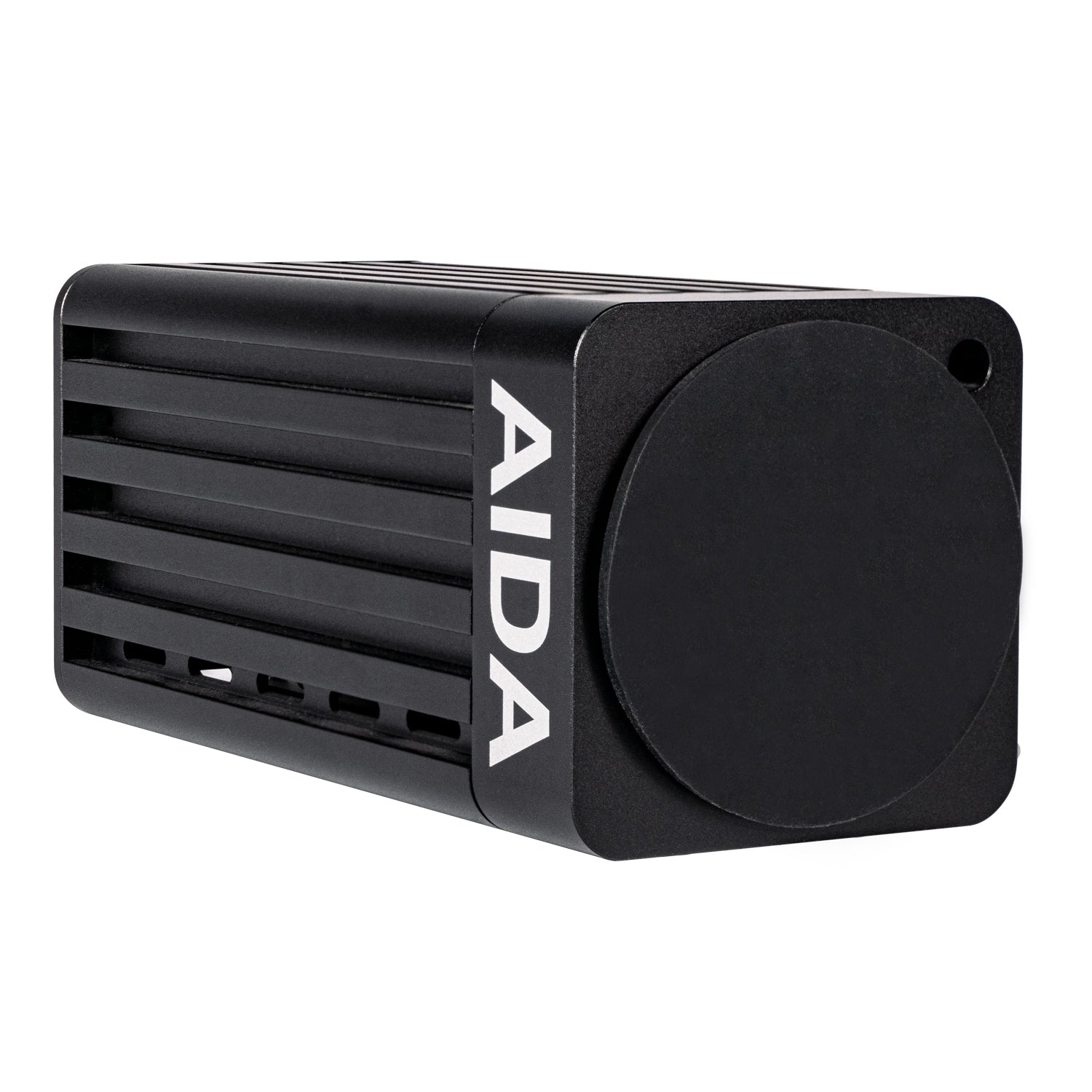

AIDA UHD6G-X20L FULL 4K/30 HDMI 1.4 & 6G-SDI 20X Zoom POV Camera

AID-UHD6G-X20L
$2,948.07
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.
FAST DELIVERY. FREE SHIPPING & returns.
PRE-ORDER (SHIPS IN 3-4 WEEKS)

unavailable

PRE-ORDER (SHIPS IN 3-4 WEEKS)

The AIDA UHD6G-X20L delivers broadcast-quality 4K/30 video capture in a compact, versatile package. Featuring both HDMI 1.4 and 6G-SDI connectivity, this POV camera integrates seamlessly into professional workflows and live production setups.

The 20X optical zoom provides exceptional flexibility for framing shots from a distance, ideal for events, sports coverage, conferences, and streaming applications. Its full 4K resolution ensures crisp, detailed imagery suitable for modern broadcast standards and archival quality.

Built for reliability in demanding environments, the UHD6G-X20L combines professional-grade construction with intuitive operation. Whether you're capturing dynamic live events or producing polished content, this camera delivers the performance and connectivity professionals demand.

Product overview

Key product features

- 1/2.8" CMOS sensor
- Up to 4K UHD (3840×2160) at 30fps
- 20x optical zoom lens
- Video outputs: HDMI 1.4 and 6G-SDI
- Supports VISCA control (Serial / IP)
- Compact POV-style design for flexible installation

Data & specifications sheet

- Image Sensor: 1/2.8" Progressive CMOS
- Effective Pixels: 3840 × 2160

Video Resolution:
- 3840 × 2160p @ 30 / 29.97 / 25 fps
- 1920 × 1080p @ 60 / 59.94 / 50 / 30 / 25 fps
- 1920 × 1080i @ 60 / 59.94 / 50 fps
- 1280 × 720p @ 60 / 59.94 / 50 fps
- Video Format: 4:2:2 (via SDI), 4:2:0 (via HDMI)
- Lens & Optics
- Optical Zoom: 20x
- Focal Length: Approx. 4.7 mm – 94 mm
- Field of View (FOV): Approx. 60° (wide) to 3° (tele)
- Aperture: f/1.6 – f/3.5

Minimum Illumination:
- Colour: ~0.5 lux
- Low-light mode: ~0.1 lux

Image Control:
- White Balance: Auto / Manual (Approx. 2500K – 8000K)
- Gain Control: Auto / Manual
- Shutter Speed: Auto / Manual
- Backlight Compensation: Supported
- Wide Dynamic Range (WDR): Supported
- Noise Reduction: 2D / 3D
- Video Outputs
- SDI Output: 1 × 6G-SDI (up to 4K)
- HDMI Output: 1 × HDMI 1.4

Audio:
- Audio Input: 1 × 3.5mm Line In (embedded over SDI/HDMI)

Control & Interfaces:
- Control Protocols: VISCA (RS-232 / RS-485 / IP)
- Network: RJ45 (for IP control)

Power:
- Power Supply: DC 12V
- Power Consumption: Approx. 8–12W

Physical:
- Form Factor: Compact POV-style camera
- Mounting: Flexible mounting options for fixed installations

FAQs

1. What is the AIDA UHD6G-X20L used for?

The UHD6G-X20L is a professional 4K POV camera designed for broadcast production, live streaming, sports coverage, AV installations, houses of worship, and security applications that require long-range zoom and broadcast-quality video.

2. Does the UHD6G-X20L support 4K video output?

Yes. The UHD6G-X20L captures and outputs Ultra HD 4K video, delivering detailed image quality for professional production environments.

3. What zoom capability does the UHD6G-X20L offer?

The camera features a powerful 20x optical zoom lens, making it ideal for capturing distant subjects while maintaining image clarity and detail.

4. Is the UHD6G-X20L suitable for live broadcast applications?

Yes. The UHD6G-X20L is designed for professional broadcast workflows and integrates easily into production environments that require reliable UHD video capture.

5. Does the UHD6G-X20L perform well in challenging lighting conditions?

Yes. The camera uses advanced imaging technology and a wide dynamic range to deliver clear, detailed images across a variety of lighting environments.

6. What makes the UHD6G-X20L different from other POV cameras?

The UHD6G-X20L combines professional 4K image quality, a powerful 20x optical zoom, and a compact POV design, providing exceptional flexibility for demanding video production applications.
