Calrec Apex M6 Modular Audio I/O Platform

Calrec Apex M6 Modular Audio I/O Platform

CAL-IR6811
$11,825.00
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.
FAST DELIVERY. FREE SHIPPING & returns.
PRE-ORDER (SHIPS IN 3-4 WEEKS)

unavailable

PRE-ORDER (SHIPS IN 3-4 WEEKS)

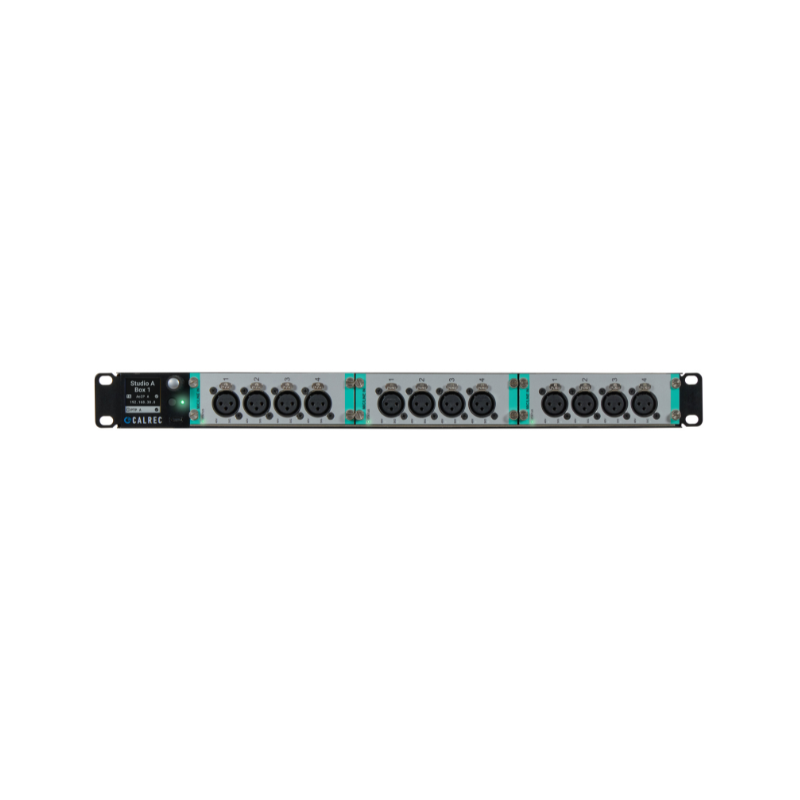

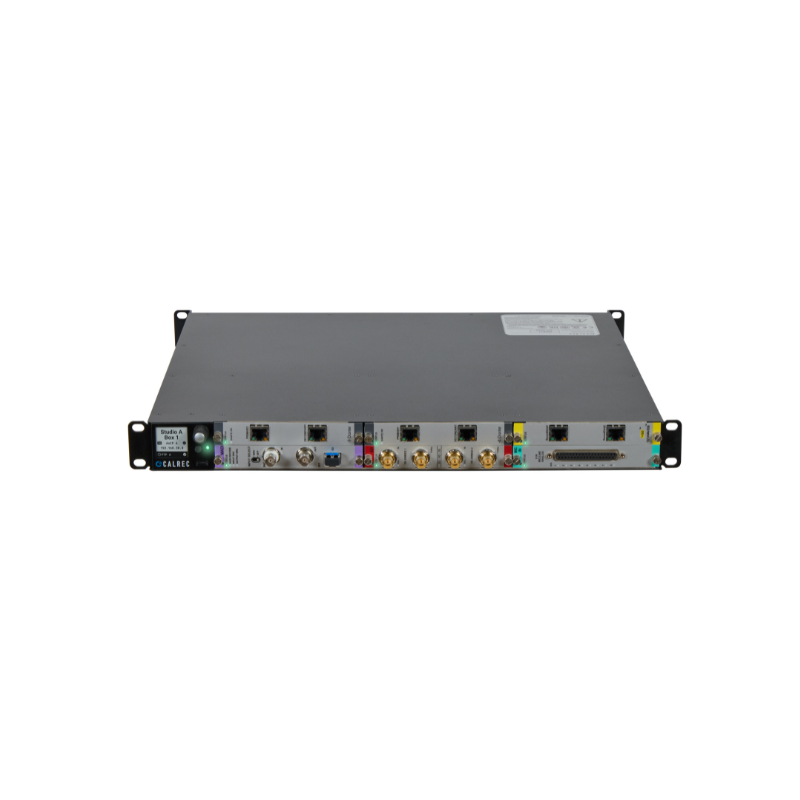

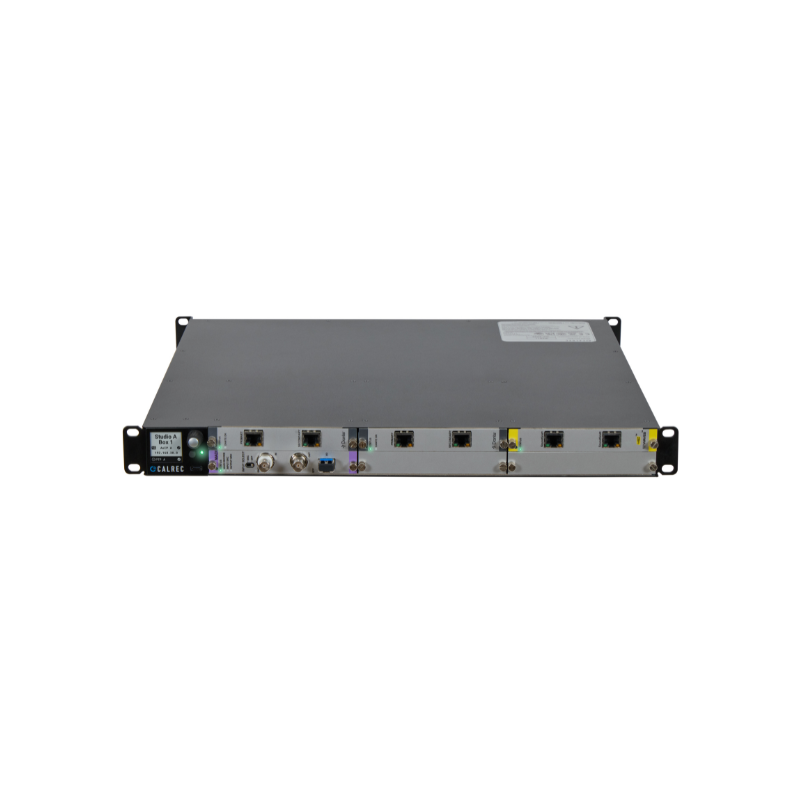

The Calrec Apex M6 delivers powerful audio interfacing, format conversion, signal routing and network edge connectivity in a compact 1RU form factor. Designed for modern broadcast, live production and IP migration projects, Apex M6 provides a versatile platform for connecting virtually any professional audio environment.
Supporting ST 2110-30, AES67, Dante, MADI, SDI, Waves SoundGrid, AES3 and analogue audio formats, the Apex M6 simplifies interoperability between legacy and IP-based systems. Built-in MADI connectivity, flexible internal routing and support for up to six modular I/O cards allow broadcasters and production facilities to deploy connectivity exactly where it is needed.
Apex M6 functions as both a modular I/O frame and a standalone format converter, enabling seamless audio transport and conversion without requiring external routing infrastructure. Native NMOS support ensures compatibility with multi-vendor IP ecosystems and virtualised production environments.
Whether deployed in broadcast facilities, flypacks, remote productions or temporary event infrastructure, Apex M6 provides a cost-effective path to IP while protecting existing infrastructure investments.
*IO Cards sold separately*

Product overview
Key product features

- Compact 1RU modular platform
- Supports ST 2110-30 and AES67 workflows
- Bridges Dante, MADI, SDI and IP environments
- Flexible 1-to-N internal routing
- Native NMOS interoperability
- Up to six modular I/O cards
- Integrated MADI connectivity as standard
- Suitable for remote, distributed and virtualised production
- Redundant power inputs for operational resilience
Data & specifications sheet

Form Factor: 1RU Modular I/O Platform
Expansion Slots: Up to 6 Calrec modular I/O cards
Supported Formats: ST 2110-30, AES67, Dante, MADI, SDI, Waves SoundGrid, AES3, Analogue

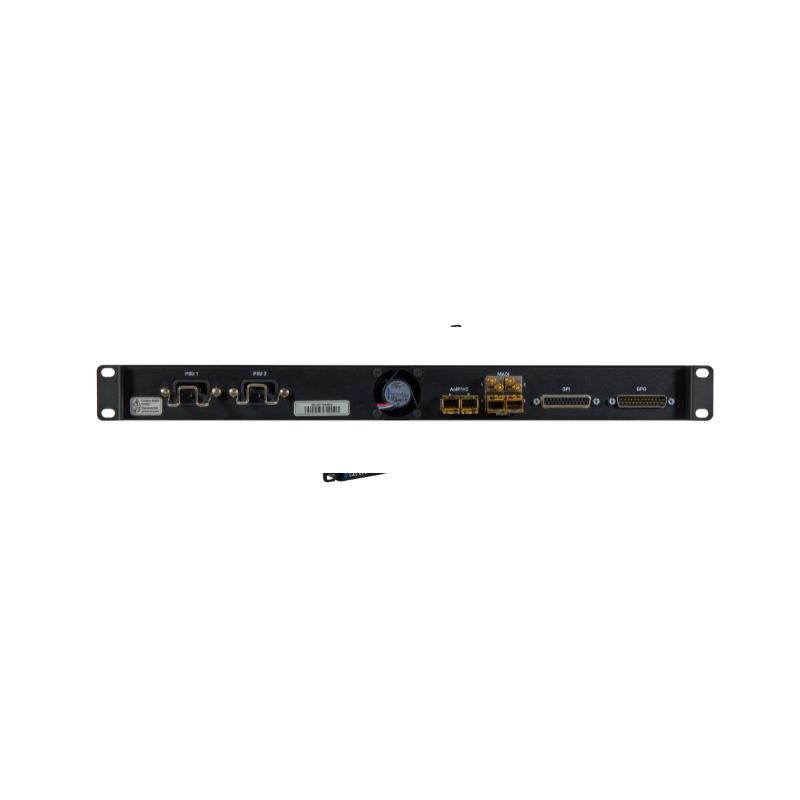

Built-in MADI: 2 x MADI SFP Ports (64x64 each)
AoIP Connectivity: 2 x AoIP/Hydra2 SFP Ports
AoIP Capacity: 512 x 512 channels over 32 streams
Network Speed: 1GbE / 10GbE
Management Ports: 2 x Out-of-Band Management SFP Ports
GPIO: 8 x GPIO on D2 connectors
Power: Dual redundant IEC C14 inputs
USB: 1 x USB-C
Control: Front-panel E-Ink display with rotary encoder
NMOS Support: Yes
Redundant Networking: Yes
Routing: Internal 1-to-N routing
Deployment: Fixed, temporary, edge and remote production environments
FAQs

1. What is the Calrec Apex M6?

The Apex M6 is a modular 1RU audio I/O platform that provides audio interfacing, routing, format conversion, network bridging and edge connectivity for broadcast and production environments.

2. Which audio formats does the Apex M6 support?

It supports ST 2110-30, AES67, Dante, MADI, SDI, Waves SoundGrid, AES3 and analogue audio formats.

3. Can Apex M6 be used for ST 2110 migration?

Yes. Apex M6 is designed to provide a cost-effective pathway to ST 2110 and AES67 workflows while allowing organisations to continue using existing MADI infrastructure.

4. Does Apex M6 support Dante?

Yes. Apex M6 supports Dante networking and can bridge Dante environments with other audio networking technologies.

5. How many expansion cards can be installed?

The frame supports up to six Calrec modular I/O cards.

6. Does Apex M6 support NMOS?

Yes. Native NMOS support enables operation within multi-vendor IP production ecosystems.

7. Is Apex M6 suitable for remote production?

Yes. It is designed for flypacks, remote venues, temporary event infrastructure and distributed production deployments.

8. What redundancy features are included?

The system includes dual redundant IEC C14 power supplies and redundant 1G/10G ST 2110/AES67 networking connectivity.
