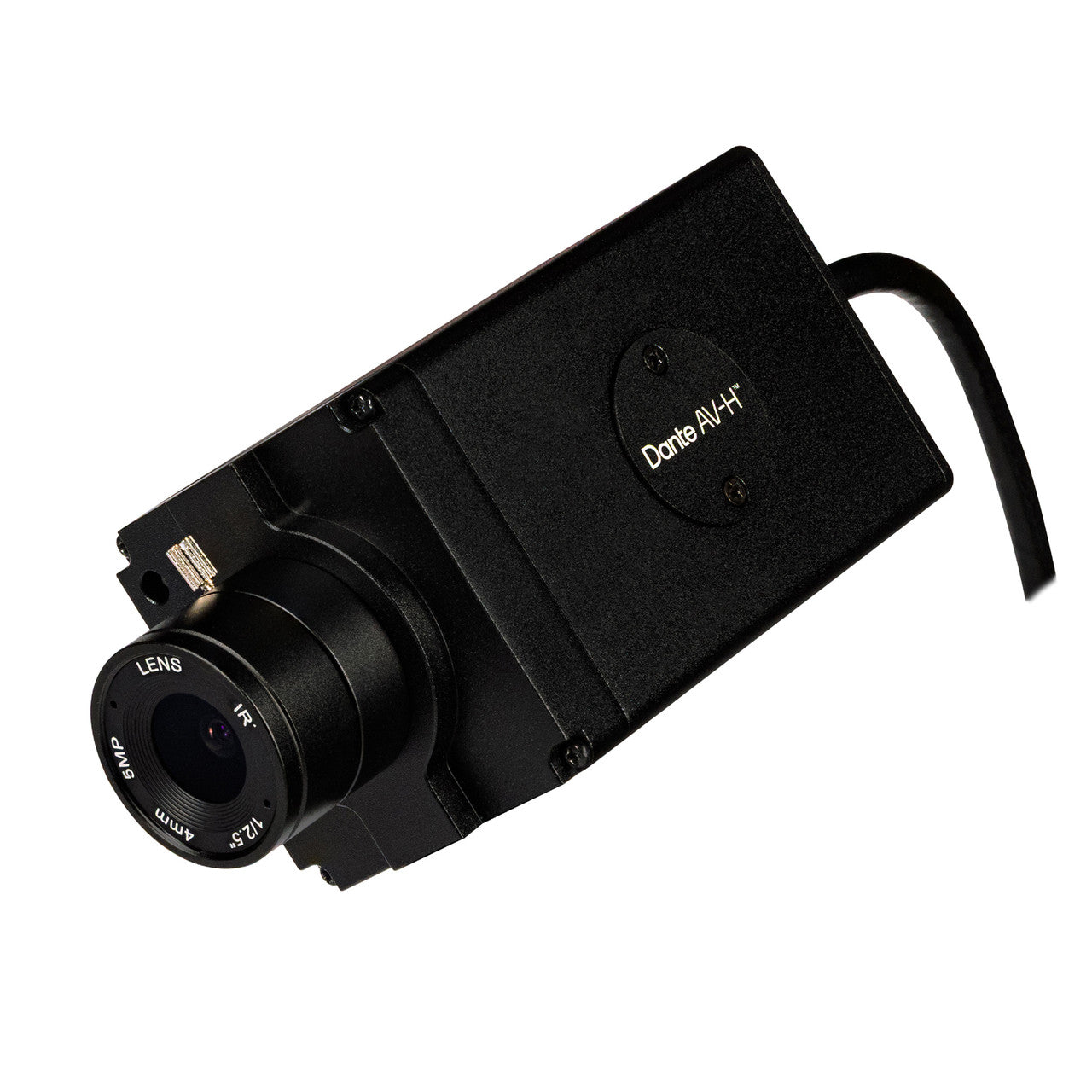

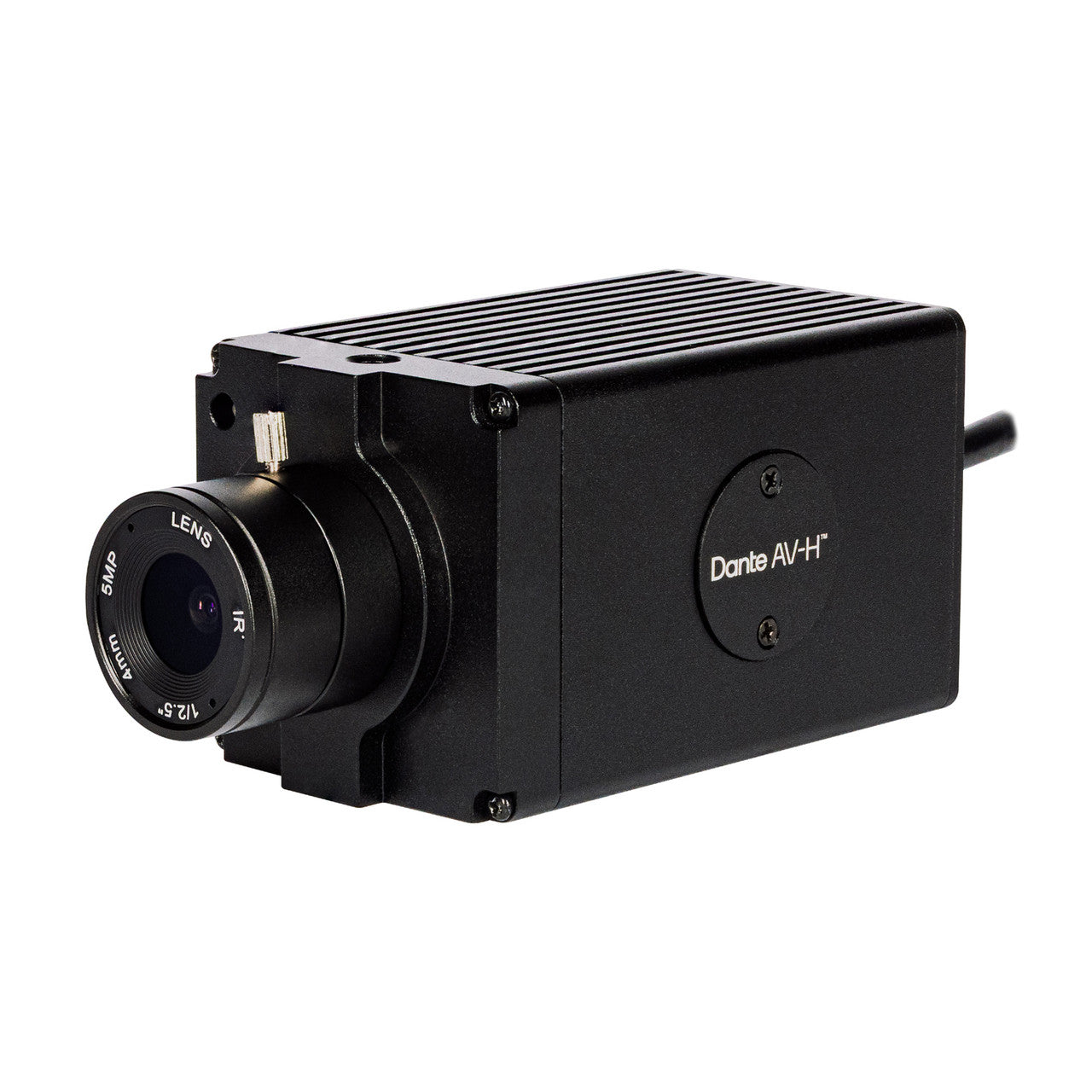

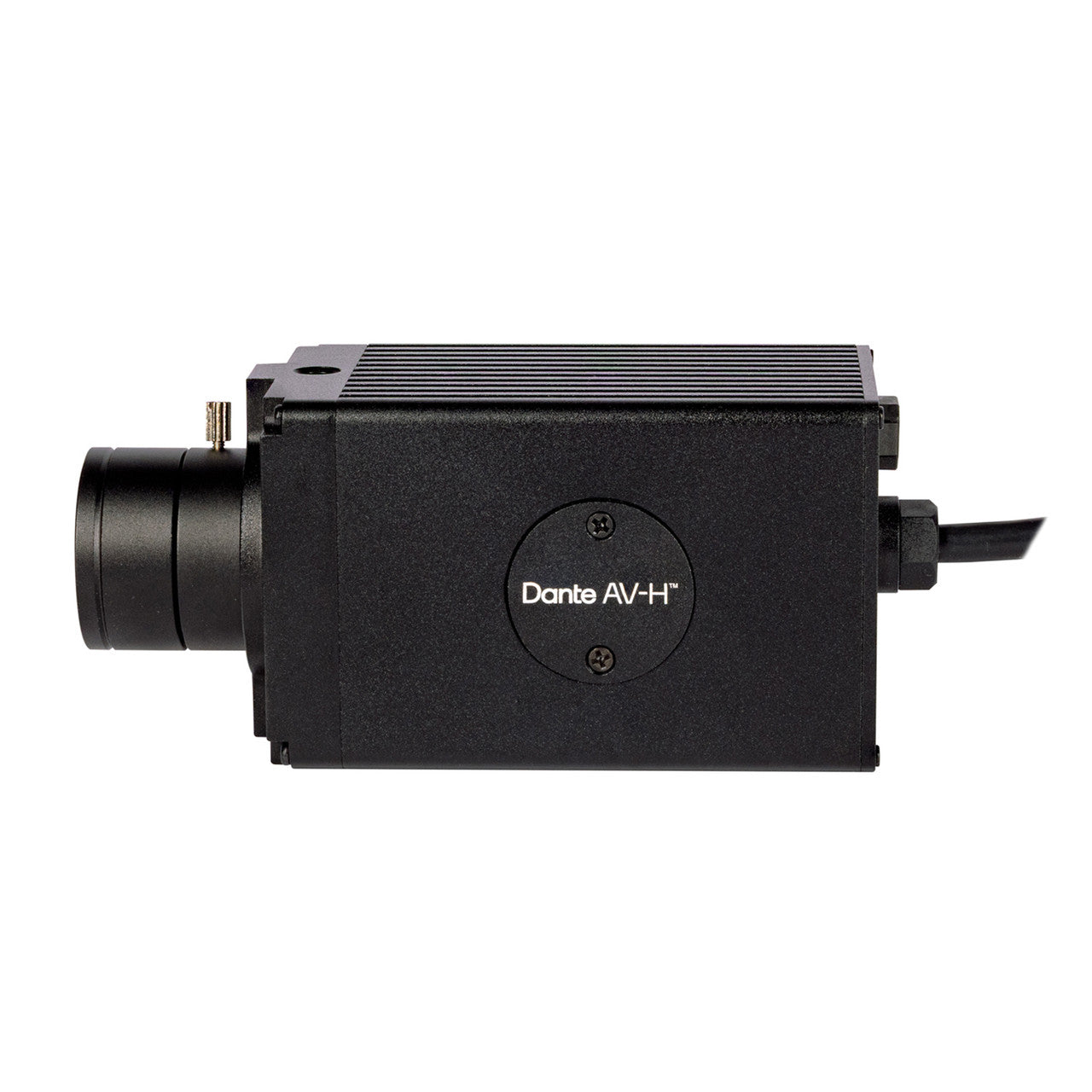

AIDA HD-AVH-100A Dante AV-H Ready Full-HD Streaming with IP / SRT / HDMI, PoE+ POV Camera

AID-HD-AVH-100A
$1,541.48
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.
FAST DELIVERY.
PRE-ORDER (SHIPS IN 3-4 WEEKS)

unavailable

PRE-ORDER (SHIPS IN 3-4 WEEKS)
The AIDA HD-AVH-100A is a professional-grade full-HD streaming camera engineered for demanding broadcast and surveillance applications. Built with Dante AV-H connectivity, it seamlessly integrates into AES67-compliant networked audio-video systems, eliminating traditional cable runs and simplifying infrastructure.

This compact POV camera delivers crisp 1080p video via multiple output options including IP, SRT, and HDMI, providing flexibility across hybrid streaming setups. Power-over-Ethernet Plus (PoE+) operation reduces installation complexity and cost by combining power and data over a single connection.

Ideal for live events, remote production, house of worship installations, and surveillance workflows, the HD-AVH-100A combines broadcast-quality performance with network efficiency. Its robust design and professional-grade Dante integration make it the go-to choice for facilities seeking reliable, scalable video distribution without compromising quality.

Product overview

Key product features

1080p 1/2.8" Progressive Scan CMOS sensor capable of capturing up to 60fps over Dante® AV-H, HDMI, and IP streams simultaneously
First-ever Dante® Ready POV camera, enabling easy video integration into Dante AV-H workflows with a simple license activation
Supports multiple IP streaming protocols, including RTSP, RTMP, and SRT
Flexible CS mount lens for customizable field-of-view options
Compact, lightweight design-ideal for fixed installs, live events, and mobile production setups
PoE+ built-in for streamlined power and data over a single cable
Rugged and versatile form factor with ¼"-20 mounting thread for easy integration into any setup

Data & specifications sheet

Video
Image Sensor: 1/2.8" Progressive CMOS
Effective Pixels:
- Horizontal: 1920
- Vertical: 1080
Pixel Size: 2.9µm (H) x 2.9µm (V)
Resolution: 1080p, 1080i, 720p
Resolution Rate:
- 1080: 60p/59.94/50p/30p/25p/24p
- 1080: 60i/59.94i/50i
- 720: 60p/59.94p/50p
Output: DANTE AV-H (purchase through Dante® Activator)/HDMI/IP
Color Space: 4:2:2 (YCbCr) 10bit
Min Illumination: 0.2Lux (day), 0.1Lux (Night)
White Balance: Auto & Manual (9000 - 11,000 K)

Lens
Module: 5MP 4mm CS Mount Lens
HFOV: 72°

Audio
Audio Embed: Embed over IP streams ONLY
Input: 3.5mm Line Input

Standard
Control Protocol: Serial VISCA, VISCA over IP

Physical
Camera Control Protocol: RS485, RJ45
Operation Temp: 32°F - 104°F
Dimension: 3.19" x 1.97" x 1.97"
Weight: 1lb
Power: 12VDC (+9VDC - +15VDC)(PoE+ with Adapter)
