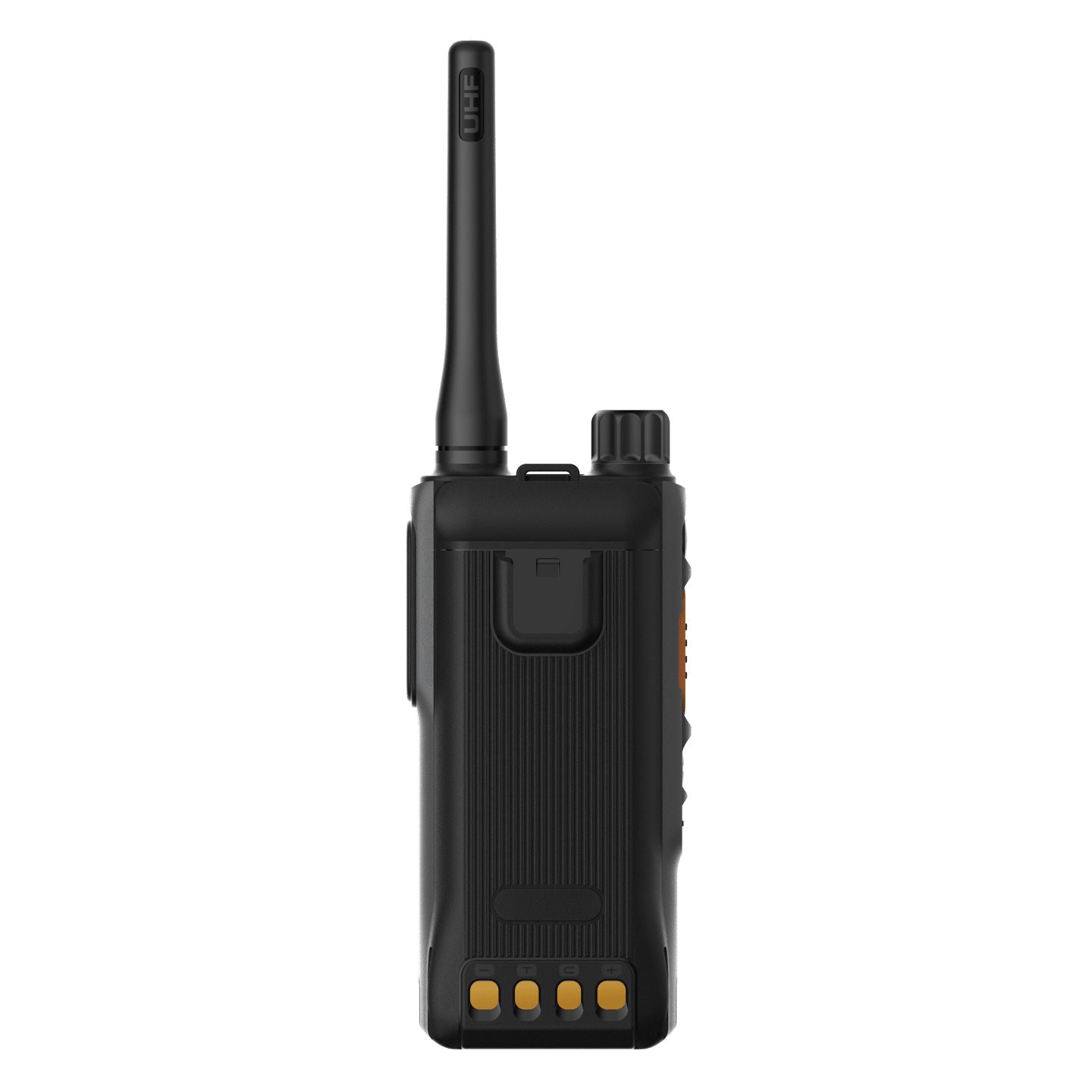

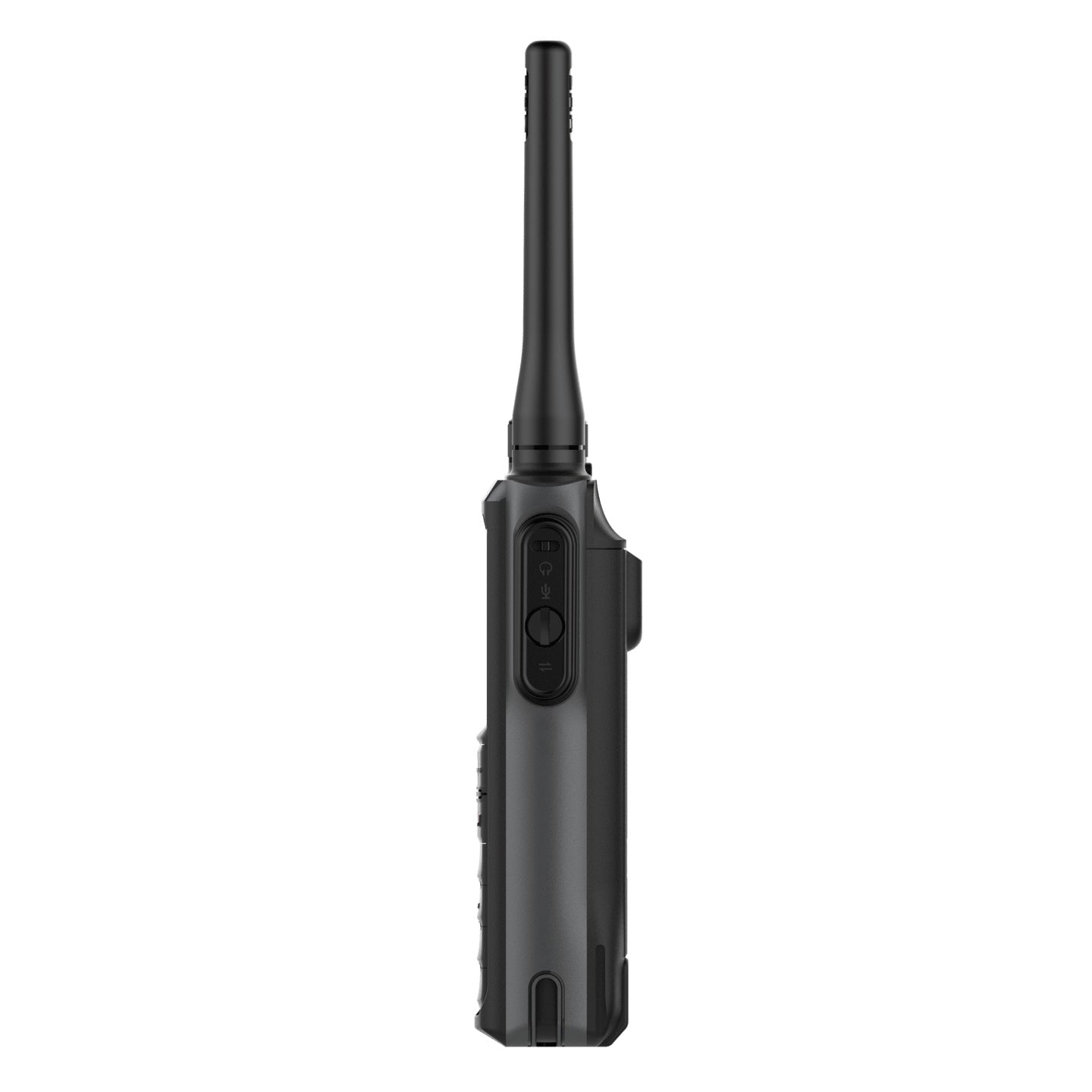

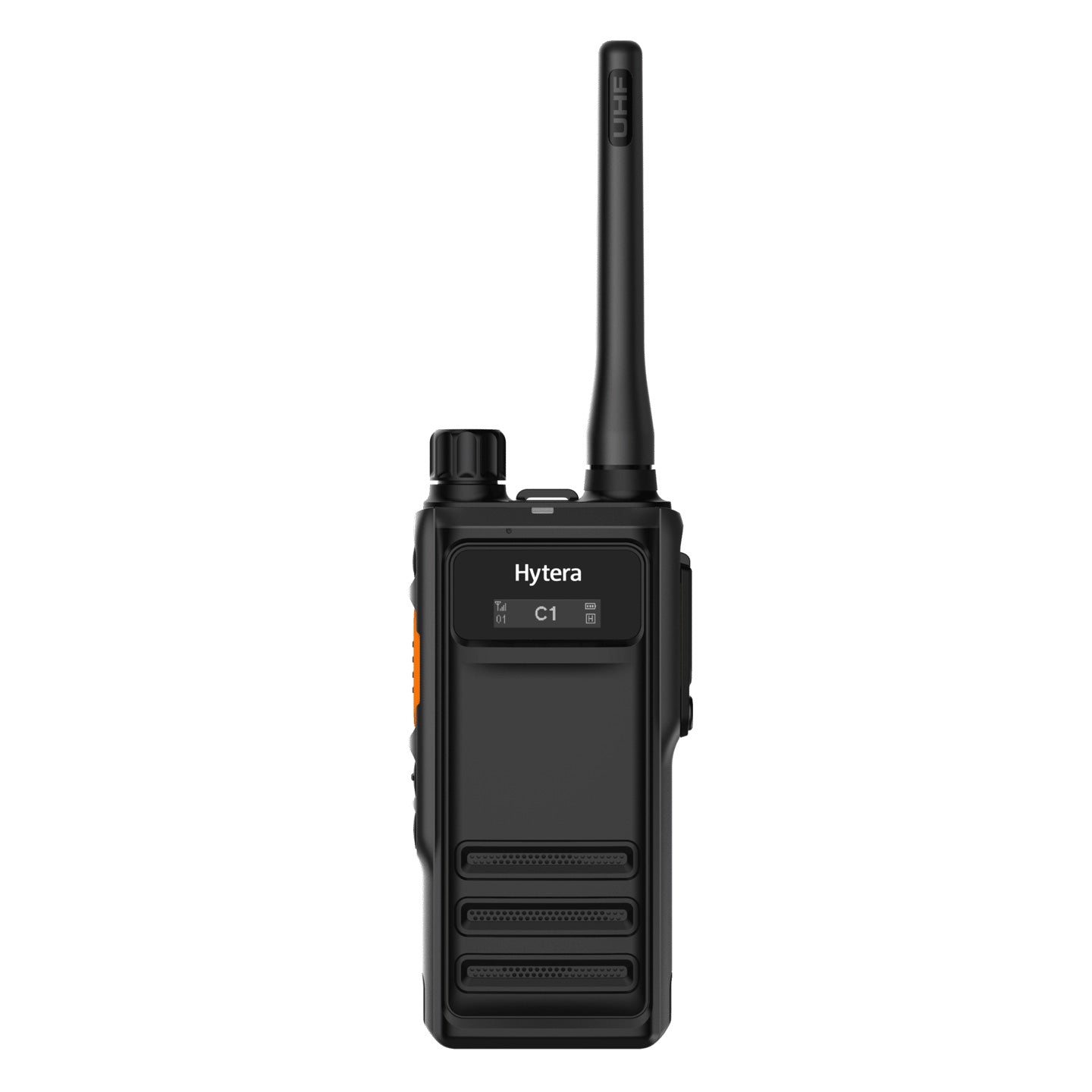

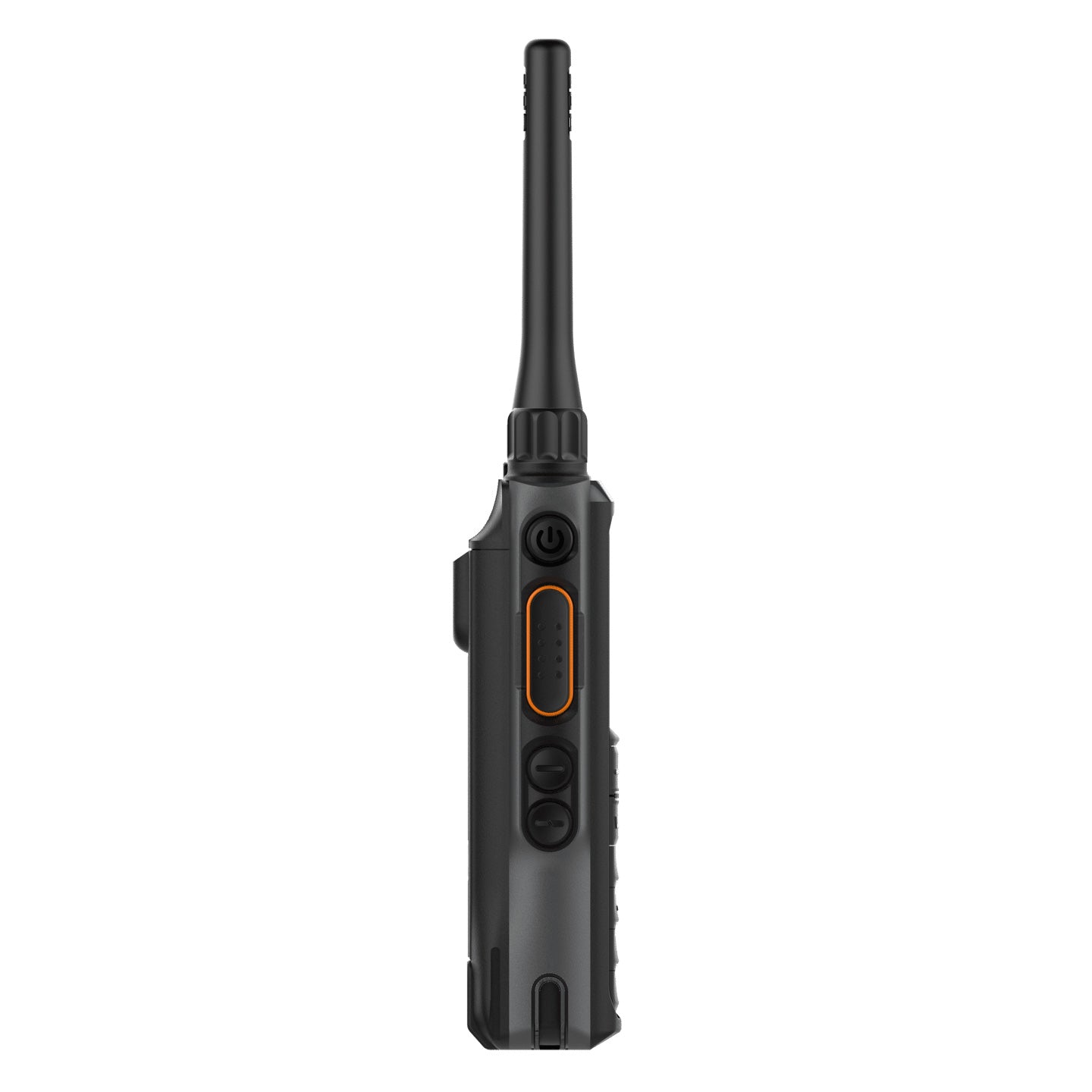

Hytera HP602 DMR & Analogue Two Way Radio
unavailable
Couldn't load pickup availability
The Hytera HP602 represents the next evolution in professional two-way radio communication, blending innovative design with advanced functionality. Engineered for reliability and efficiency, this H-Series DMR radio ensures crystal-clear audio, extended battery life, and an intuitive user experience—setting a new benchmark in digital communication.
Designed for both demanding work environments and customer service roles, the HP602 features a one-line OLED display, GPS capabilities, and a robust 20-hour Lithium Polymer battery. Its rugged construction and industry-leading audio performance make it an ideal solution for those who require seamless and dependable connectivity.
Whether operating in digital (DMR) or analogue mode, the HP602 delivers extended range and uncompromising clarity, ensuring every message is heard, even in challenging conditions.
Product overview
Key product features
'- 0.91 Inch OLED display, up to 1024 channels.
- 12.5kHz/20kHz/25kHz channel spacing
- IP67 and MIL-STD-810 G to ensure outstanding performance in harsh environments
- Digital voice call function, Digital text message function (pre-programmable message)
- Supports remote management including:
- Remote monitor
- Radio enable
- Radio disable
- AI-based Noise Cancellation, Lone worker
- Basic/advanced digital encryption and Scrambler feature in analog mode
- Pseudo trunk operation (DMO&RMO)
- Multi-Site Roaming (optional), Channel Change Voice Notification
- One-touch call/text message services, Telemetry
- Analogue & Digital Emergency
- Supports XPT digital trunking
Data & specifications sheet
GENERAL
- Frequency Range: UHF 400-527 MHZ , VHF 136-174MHz
- Channel Capacity: 1,024 Channels (512 Analog, 512 Digital)
- Zone Capacity: 64 Zones with 256 Channels per Zone
- Channel Spacing: 12.5kHz / 20kHz / 25kHz
- Operational Voltage: 7.7V (Rated)
- Battery: 2000mAh Li-Ion Polymer
- Battery Life (5/5/90): 16 Hours with GPS on, 20 Hours GPS disabled
- Weight: 265g
- Dimensions (H x W x D): 122 x 55 x 30.5mm (without antenna)
- Frequency Stability: ± 0.5ppm
- Antenna Impedance: 50Ω
- Display: OLED 0.91” Display
- Bluetooth: BT 5.0 BLE+EDR
GPS (5 Satellites visible at nominal 130dBm)
- Time to First Fix Cold Start: <60 Seconds (Typical TTFF)
- Time to First Fix Hot Start: <10 Seconds (Typical TTFF)
- Horizontal Accuracy: <5 metres
RECEIVER
- Digital Sensitivity: 0.18μV (BER 5%)
- Analog Sensitivity: 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD)
- Adjacent Selectivity: TIA-603: 60dB@12.5kHz, 70dB@20/25kHz ETSI: 60dB@12.5kHz, 70dB@20/25kHz
- Spurious Response Rejection: TIA-603: 70dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz
- Intermodulation: TIA-603: 70dB@12.5/20/25kHz ETSI: 65dB@12.5/20/25kHz
- Hum and Noise: 40dB@12.5kHz, 43dB@20kHz, 45dB@25kHz
- Rated Audio Power Output: 0.5W
- Rated Audio Distortion: ≤3%
- Audio Response: +1 to -3dB
- Conducted Spurious Emission: <-57dBm
TRANSMITTER
- RF Power Output: VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W
- FM Modulation: 11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz
- 4FSK Digital Modulation: 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
- Conducted/Radiated Emission: -36dBm 1GHz
- Modulation Limiting: ±2.5kHz @ 12.5kHz, ±4.0kHz @ 20kHz, ±5.0kHz @ 25kHz
- FM Hum and Noise: 40dB @ 12.5kHz, 43dB @ 20kHz, 45dB @ 25kHz
- Adjacent Channel Power: 60dB @ 12.5kHz, 70dB @ 25kHz
- Audio Response: +1 to -3dB
- Audio Distortion: ≤3%
- Digital Vocoder Type: AMBE+2TM
ENVIRONMENTAL
- Operating Temperature: -0°F to +140°F (-20°C to +60°C)
- Storage Temperature: -40°F to +185°F (-40°C to +85°C)
- ESD: IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air
- Dust and Water Ingress: IP67 Standard
- Humidity: Per MIL-STD-810 C/D/E/F/G Standard
- Shock and Vibration: Per MIL-STD-810 C/D/E/F/G Standard
Product Brochure
