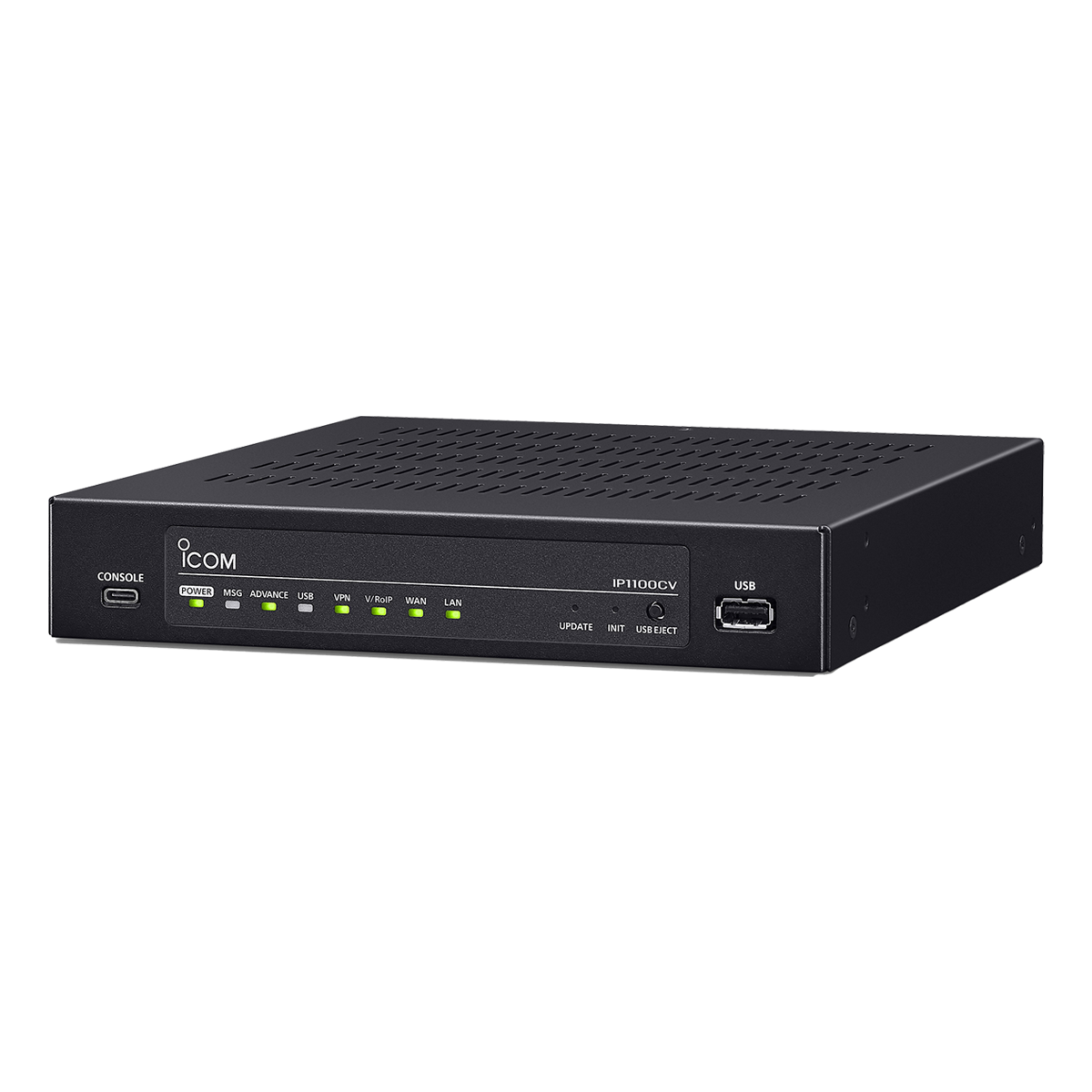

ICOM IP1100CV Wi-Fi Radio System Controller
Enquire now
You may qualify for trade pricing
A D2N specialist replies within one business hour
Speak with a D2N specialist now
The ICOM IP1100CV is a system controller designed to manage ICOM IP110H and IP100H Wi-Fi radio communications across an IP network. Install a controller on the network and deploy Wi-Fi access points throughout the required coverage area to create a flexible radio communication system.
Supporting registration of up to 300 Wi-Fi radios and compatible software clients, the IP1100CV is suited to larger professional communications systems where teams need radio-style push-to-talk communications over existing or purpose-built Wi-Fi infrastructure.
Automatic provisioning helps simplify fleet deployment by applying stored configuration settings when compatible Wi-Fi radios connect to the network. The controller supports up to 500 individual and group call addresses and provides browser-based configuration for streamlined system administration.
For multi-site applications, the integrated 2.5 Gbps WAN connection and VPN router functionality can securely link compatible controllers across the internet. The IP1100CV also offers communication audio recording to an external USB flash drive and is designed for rack installation using the optional MBF-6 mounting bracket.
A capable central platform for organisations deploying scalable ICOM Wi-Fi radio communications across buildings, facilities and multiple locations.
Product overview
Key product features
- Controls ICOM IP110H and IP100H Wi-Fi radio systems
- Register up to 300 Wi-Fi radios and compatible software clients
- Configure up to 500 individual and group call addresses
- Automatic provisioning simplifies compatible Wi-Fi radio deployment
- Integrated 2.5 Gbps WAN and LAN Ethernet connections
- VPN router function supports secure multi-site system connectivity
- Configure compatible Wi-Fi radios through a web browser
- Record specified communication audio to an external USB flash drive
- Compact 1U, half-width design for professional rack installations
- Online firmware update capability
Data & specifications sheet
System
- Product type:** Wi-Fi transceiver system controller
- Compatible Wi-Fi radios:** ICOM IP110H and IP100H
- Maximum registered units:** 300 Wi-Fi radios/software clients
- Maximum call addresses:** 500 individual and group call addresses
- Compatible PC software clients:** RC-FS20 and IP100FS
- Provisioning:** Automatic radio provisioning supported
- Configuration:** Web browser based
- Recording:** Specified communication audio can be recorded to external USB storage

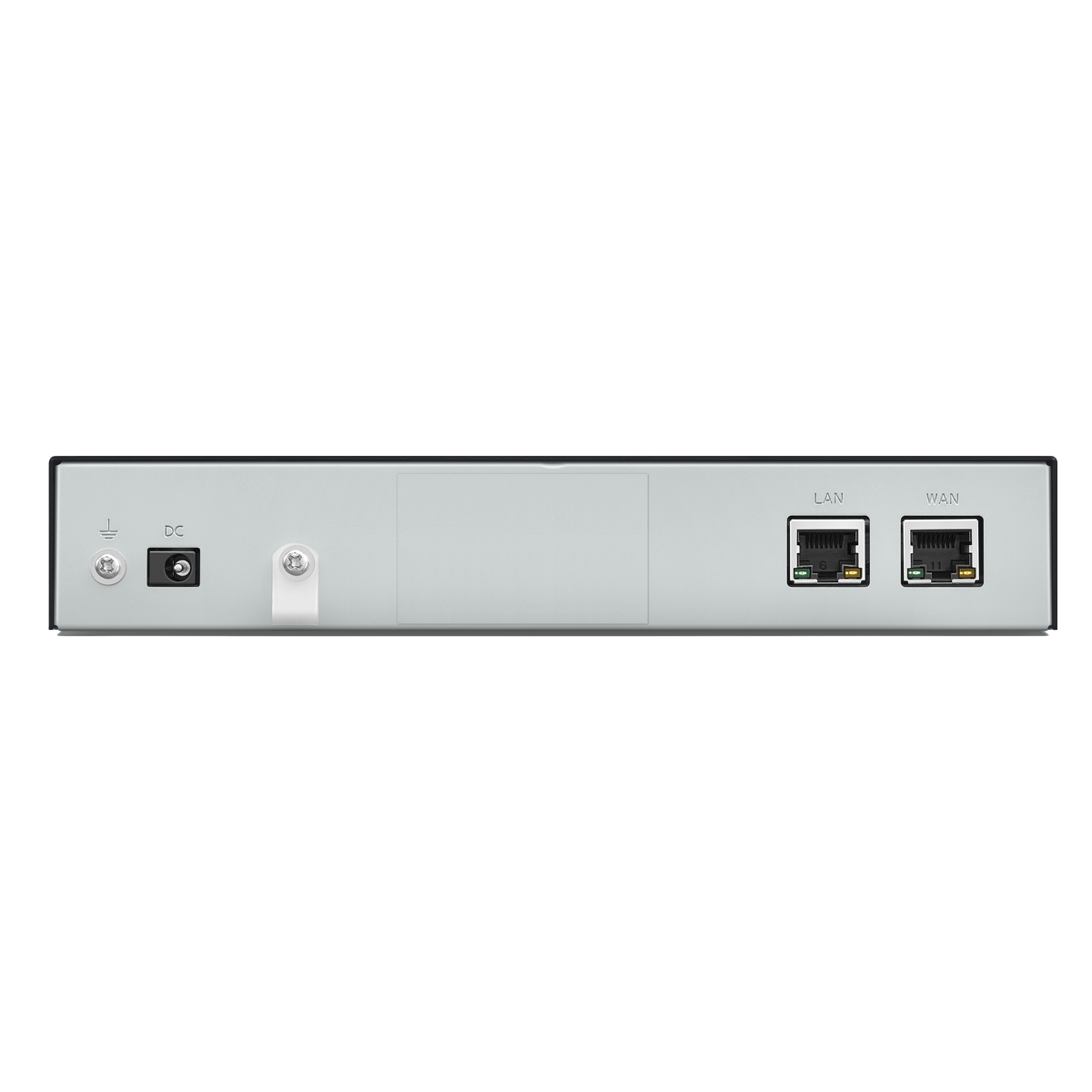

Network Connections
- WAN:** 1 × RJ-45
- WAN speed:** 2.5GBASE-T / 1000BASE-T / 100BASE-TX
- LAN:** 1 × RJ-45
- LAN speed:** 2.5GBASE-T / 1000BASE-T / 100BASE-TX
- Ethernet:** Auto MDI/MDI-X
- VPN:** Built-in VPN router functionality
USB
- **USB storage:** 1 × USB 3.0 Type-A
- **Maintenance console:** 1 × USB 2.0 Type-C
Power
- Power requirement:** 12 V DC ±10%
- Power consumption:** Less than 33 W
Physical
- Width:** 213 mm
- Height:** 36.8 mm
- Depth:** 242 mm
- Weight:** Approx. 1.5 kg
- Rack format:** 1U, half-width
- Rack mounting:** Optional ICOM MBF-6 bracket
Environmental
- Operating temperature:** 0°C to +40°C
- Operating humidity:** 5–95%, non-condensing
Supplied Accessories
- Magnet legs
- Screws
- Clamp
- Flat washer and screw
**Note:** AC adaptor is not supplied and must be sourced separately.
FAQs
1. What is the ICOM IP1100CV?
The ICOM IP1100CV is a system controller for ICOM IP110H and IP100H Wi-Fi radios. It manages radio communications over a Wi-Fi network and provides centralised configuration, provisioning and system management.
2. How many radios can the ICOM IP1100CV support?
The IP1100CV can register up to 300 units, including compatible ICOM handheld Wi-Fi radios and supported software clients. This makes it suitable for larger radio deployments across professional facilities and organisations.
3. Which radios are compatible with the IP1100CV?
The IP1100CV is designed for the ICOM IP110H and IP100H Wi-Fi radios. ICOM RC-FS20 and IP100FS Windows software clients can also be used to communicate with radios on the system.
4. Can the IP1100CV connect multiple locations?
Yes. The IP1100CV includes VPN router functionality that can link compatible IP1100CV controllers over the internet. ICOM also specifies VPN connectivity between the IP1100CV and VE-PG4, allowing Wi-Fi radio communications to be extended between locations.
5. Can the IP1100CV record radio communications?
Yes. The IP1100CV can record specified communication audio to an external USB flash drive connected to its USB 3.0 Type-A port.
6. Can the IP1100CV be installed in a server rack?
Yes. The IP1100CV has a compact 1U, half-width design and can be installed in a standard 19-inch server rack using the optional ICOM MBF-6 rack mounting bracket.
