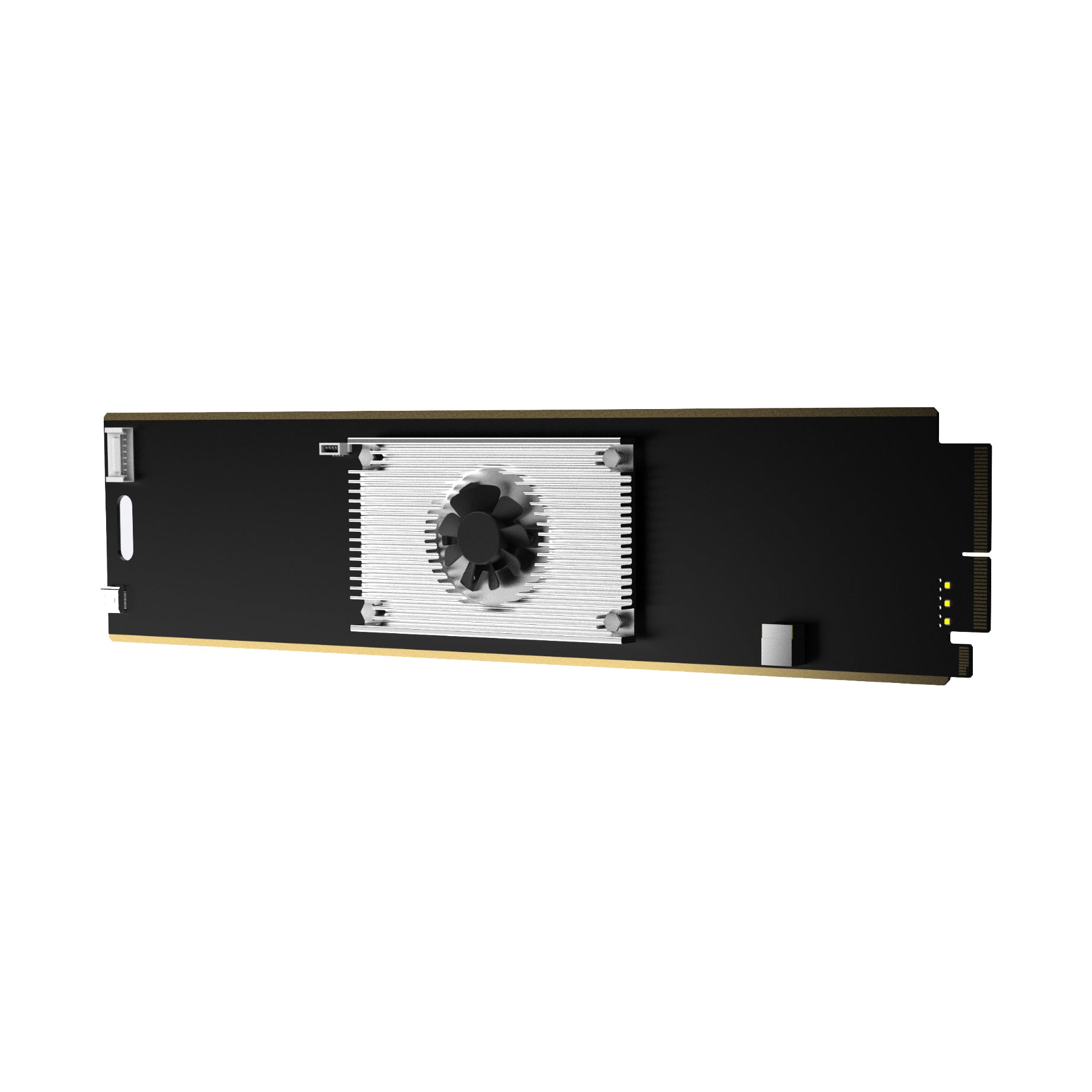

Kiloview FMG-400 Media Gateway Card

KIL-FMG-400
$2,123.00
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.
FAST DELIVERY. FREE SHIPPING & returns.
PRE-ORDER (SHIPS IN 3-4 WEEKS)

unavailable

PRE-ORDER (SHIPS IN 3-4 WEEKS)

The Kiloview FMG-400 Media Gateway Card is purpose-built for the Cradle Series RF02. This high-performance card redefines media operations with its seamless transcoding of H.264, H.265, and SpeedHQ, and multi-protocol streaming support including NDI, SRT, RTMP, and more.

Effortlessly manage 1x4K P60 or 4x1080P60 video streams, offering flexible media routing and protocol conversion. The FMG-400 also features a Bonding Mode, integrating with Kiloview P-Series encoders for secure remote device and workflow control. Enjoy crystal-clear 4K visuals or multiple 1080P streams with support for AAC, MP3, and PCM audio.

Customise encoding formats, resolutions, and more for live streaming, video conferencing, and on-demand content. With flexible push/pull operations, multi-protocol output, and customizable multiview up to 4 grids, the FMG-400 offers unparalleled control over your visual presentation. Seamlessly integrate with Media Centre RF02, powered by KiloLink Server Pro, for a unified and intuitive management experience.

Product overview

Key product features


- High Performance, Versatile Workflows
- Seamless Multiview Output with Fully Customizable Layouts
- All-In-One Management with RF02 Integration
- Smart Temperature Control & Fan Cooling for Peak Performance

Data & specifications sheet


- Model: FMG-400
- Streaming Protocol Input/Output: NDI、NDI HX、SRT、RTMP、RTSP、RTP、UDP、HLS(More to come with customizable SIP/GB-T28281 protocol conversion)
- Video Decoding Formats: H.264 / H.265 / SpeedHQ (NDI High-bandwidth)
- Maximum Video Encoding Performance: H.264/H.265 Encoding: 4K@60Hz, 200Mbps @ Level 5.1 Main Tier
ITU-T H.264 Encoding: High Profile/Main Profile/Baseline Profile @ Level 5.2
- Audio Decoding / Audio Bitrate Range: 8/16/24bit 8k~192kHz pcm
- Grid Support: Supports up to 4-grid layouts (capable of encoding/streaming a single multi-screen video signal) *Note: This feature is unavailable in the current version and will be supported in future updates.
- Management: Web page/ KiloLink Server Pro
- Processor: 8-core ARM64 high-performance processor (Cortex A73 @ 1.8GHz)
- Memory: 12GB DDR4
- Storage: 16GB eMMC
- OS/Software: Linux 5.10 / KiloLink Server RF version
- Management and Control: Web / HTTP API
- Dimensions: 483mm x 487mm x 88mm [Standard 2RU]
- Weight: 500g
- Cooling: Active fan cooling / Automatic temperature control
- Maximum Power Consumption: ≤ 6W
