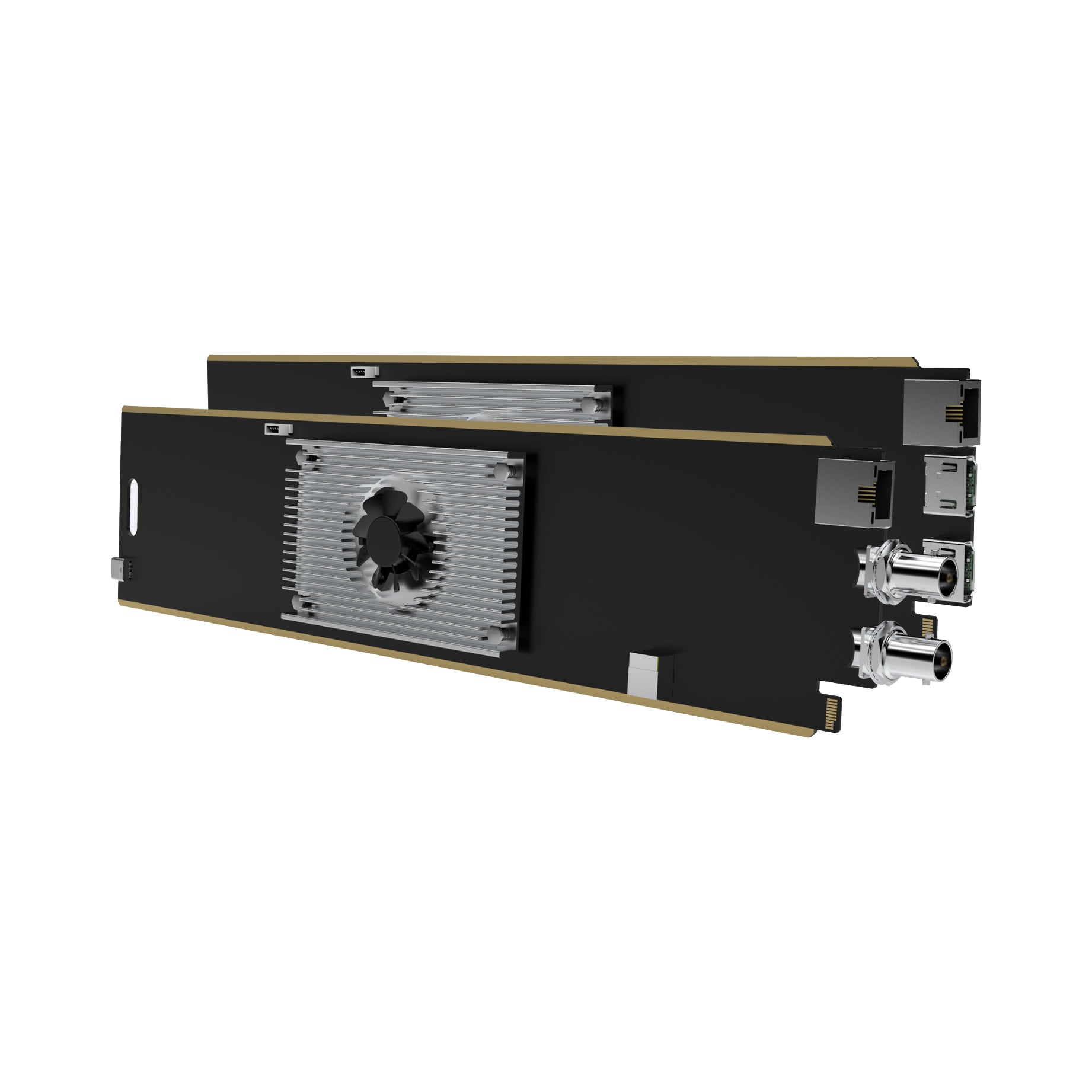

Kiloview FN50/FN60 Rackmount Card

KIL-FN50
$1,903.00
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.
FAST DELIVERY. FREE SHIPPING & returns.
PRE-ORDER (SHIPS IN 3-4 WEEKS)

unavailable

PRE-ORDER (SHIPS IN 3-4 WEEKS)

Elevate your professional IP workflows with the Kiloview FN50/FN60 Rackmount Cards. Engineered for the Cradle Series RF02, these high-performance cards offer 4K bidirectional conversion with support for NDI High Bandwidth, NDI HX, NDI HX3, and a wide range of protocols like SRT, RTMP, and RTSP.

Experience stunning visual fidelity with 4:2:2 10-bit HDR colour quality and full NDI 6 support. The integrated NDI Bridge Utility enables seamless remote productions and multi-location collaborations, empowering global creative workflows. With ultra-low latency and flexible de-interlace options, these cards are built for broadcast-quality video.

The FN50/FN60 cards integrate effortlessly with the RF02, providing a high-density, multi-channel solution that's truly plug-and-play. Enjoy centralised management via KiloLink Server Pro for simplified operation, real-time monitoring, and efficient maintenance. Plus, benefit from PTZ control, NAS recording, and a robust triple cooling system for stable, long-term performance.

Whether it's for broadcasting, live events, theatres, conferences, or sports productions, the FN50/FN60 delivers high-quality video transmission with ease, meeting the diverse needs of any professional IP environment.

Product overview

Key product features


- Seamless Integration with RF02
- All Protocols, Encoding & Decoding All-In-One
- Broadcast Level Quality
- FN-50 supports 12G-SDI input and loop-out, enabling video encoding to formats like NDI HB, NDI HX, NDI HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP—or decoding 4K NDI streams directly to 12G-SDI output.
- FN-60 supports 4KP60 HDMI input and loop-out, enabling video encoding to formats like NDI HB, NDI HX, NDI HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP—or decoding 4K NDI streams directly to 4K HDMI output.

Data & specifications sheet


- Video input interface: FN50 - 1*12G-SDI, FN60 - 1*HDMI 2.0
- Video output interface: FN50 - 1*12G-SDI, FN60 - 1*HDMI 2.0
- Video resolution: Input: up to 3840x2160 60fps (4Kp60), lowest 720p50, Output (decoding or loop out): up to 3840x2160 60fps (4Kp60), lowest 720p23.98
- NDI®CODEC feature: SpeedHQ (NDI CODEC): SHQ0, SHQ2, ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264, ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265, AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 level, HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
- Audio encoding and decoding: NDI Audio, AAC-LC, other software expansion
- Typical Bitrates: SpeedHQ (NDI CODEC): 4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60: 112Mbps, 720p60: 105Mbps 480i60: 62.5Mbps, AVC (H.264): Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60); >10Mbps(1080p60),
HEVC (H.265): Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60); >6Mbps(1080p60).
- Internet protocols: NDI High Bandwidth, NDI HX/HX3, SRT/RTSP/RTMP/HLS/UDP/RTP(*Encoding only)
- NDI® codec capacity: Supports NDI High Bandwidth, NDI|HX, NDI|HX3, SRT, RTSP, and RTMP simultaneously.
- Recording: Supports recording to NAS
- PTZ control: Network PTZ
- Management: Web UI and remote management with KILOVIEW KiloLink Server Pro
- USB: 1x USB 3.0 Type-A
- Power: Powered by RF02
- Power consumption: 16W Max
- Dimensions: 86.84 x 238.9mm
- Operating temperature: -20℃~45℃
- Storage temperature: -20℃~70℃

Product Brochure
